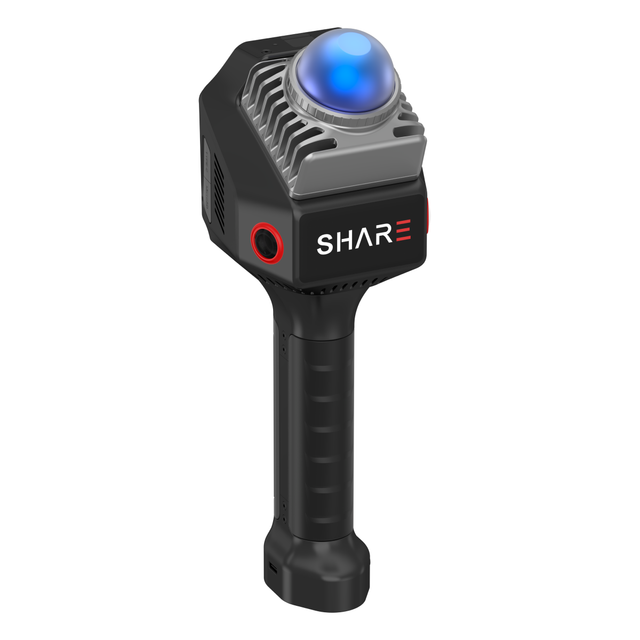

SHARE C1 Pro

Survey-grade everywhere with RTK fix in seconds, deliverable before you leave site.

$7,999.00

In stock

Interiors, stairwells, under cover, tunnels. Walk through, and the C1 Pro builds a colourised, RTK-georeferenced point cloud that registers cleanly with your drone data - indoor and outdoor, one continuous model, straight into CAD and BIM.

No equivalent handheld RTK SLAM scanner ships at this price in Australia. Every unit is stocked, configured and supported from Melbourne.

Open data, your pipeline

The raw data is yours and the hardware interface is open. Run your own SLAM pipeline, build mesh models from the pose-tagged photos, or mount the S20 on a robot platform. Nothing about the workflow is locked to one vendor.

From field to finished cloud

Process on the phone when you need a result on site, or carry the raw data into SHARE PointClouds Studio on your laptop for the full solve, roughly real time on modern hardware. Export to LAS, LAZ, E57 or PLY and it opens straight in your CAD, BIM or GIS stack. No subscription sits between the scan and the deliverable.

Live Scanning Preview

Watch the model build as you walk. The SHARE app streams your point cloud live over Wi-Fi 6 — colourised, georeferenced, with RTK status on screen — so you see coverage gaps before you leave site, not after you've driven back to the office. Scan, check, fill, done. No desktop, no second visit.

SHARE C1 Pro

Easy, Out of the Box

Pick it up, turn it on, start scanning. The S20 acquires an RTK fix in seconds — no base station setup, no targets. The SHARE app shows your point cloud building live, colourised and georeferenced as you move: 0.8 cm RTK positioning feeding every frame, producing a finished cloud with sub-5 cm absolute / sub-1 cm relative accuracy straight from the field. No desktop needed.

SHARE C1 Pro

Ground Truth

SLAM Scanning Explained

20 Jun 2026Read article

Partnership Announcement

29 May 2026Read article

Overview

Discover SHARE C1 Pro

Built-in RTK GNSS

0.8 cm + 1 ppm horizontal / 1.5 cm + 1 ppm vertical positioning. Direct georeferencing — no GCPs with RTK fix; positioning plate included for GNSS-denied scans.

Advanced LiDAR

200,000 pts/sec at 10 Hz, tilted 25° for maximum coverage. Range 0.1–70 m. Real-time or post-processed solve.

Fused LiDAR + Visual SLAM

Two SLAM engines working together hold accuracy through stairwells, tunnels and feature-poor spaces where single-sensor scanners drift.

Dual 1″ Cameras, Mechanical Shutter

16MP per lens, global exposure synced to the second with position data — true-colour clouds with no smear, and photos sharp enough for photogrammetry and 3DGS models.

Open Data

Full raw data saved and an open hardware interface — run your own SLAM, generate mesh models, or mount it on robotic platforms.

Built for the Field

150-minute battery, 256 GB expandable storage, Wi-Fi 6, –20 °C to +50 °C. Aluminium body just over 1 kg.

Compare Models

Product Name	SHARE C1Walk through. Walk out with a model.$6,199.00 Learn more	SHARE C1 ProSurvey-grade everywhere with RTK fix in seconds, deliverable before you leave site.$7,999.00 Selected
Battery Life	180 minutes	150 minutes
Camera Resolution	2.3MP × 2	16MP × 2
Camera Sensor	6.96 × 4.96mm; 1/2.6"	13.13 × 8.76mm; 1-inch
Shutter Type	Electronic global shutter	Mechanical shutter / electronic shutter
Points per Second	200,000 pts/s
Range	0.1–40m @ 10% reflectivity; 0.1–70m @ 80% reflectivity
RTK Configuration	None	Built-in (standard)
RTK Accuracy	None	Horizontal 0.8cm + 1ppm; vertical 1.5cm + 1ppm
Point Cloud Thickness	Within 1cm
Absolute Accuracy	Better than 5cm
Relative Accuracy	Better than 1cm

Buying & price

What's the difference between the S20 SE, S20 SE RTK and SLAM S20 RTK?

The S20 SE is the entry scanner with no RTK — relative accuracy only. The S20 SE RTK adds detachable RTK for georeferencing. The SLAM S20 RTK (this page) is the flagship: built-in RTK, dual 1-inch 16MP cameras with a mechanical shutter, and the highest colour fidelity of the three. If your deliverables need real-world coordinates and survey-grade colourised clouds, this is the one.

Is training included?

Yes, in Melbourne. Every S20 bought from us includes a hands-on handover from our Melbourne team covering AUSCORS NTRIP setup, your first scan and the data workflow into your CAD/BIM software. Training is also available in other major Australian cities for an additional fee.

Why is the Australian price different from SHARE's US store?

SHARE's direct price (US$4,999) works out to roughly the same money once you add currency conversion, international shipping and import GST — and it arrives with no local warranty, no training and no support. Our $7,999 includes a GST tax invoice, Australian Consumer Law protection, a hands-on handover from our Melbourne team, and someone local to call when you're standing on site with a question.

Is this S Series the same as the SHARE C Series?

The S20 Series is the first brand name for the series, this is being updated in mid to late 2026 to the C Series. Starting with the C1, previously known as the S20 SE.

Accuracy

How accurate is the S20 really? I've seen 0.8 cm and 5 cm quoted.

Both numbers are real — they measure different things. 0.8 cm + 1 ppm (horizontal) is the RTK positioning accuracy: how precisely the scan is placed in real-world coordinates. The point cloud itself achieves better than 5 cm absolute accuracy and better than 1 cm relative accuracy, with cloud thickness within 1 cm. When comparing against a survey spec, use the absolute figure.

Do I need ground control points?

Not for georeferencing, as long as you have an RTK fixed solution (AUSCORS NTRIP corrections). In GNSS-denied environments — deep interiors, tunnels, heavy cover — use the included GCP positioning plate to constrain the scan to known coordinates. For deliverables with a stated accuracy spec, we recommend independent check shots regardless; that's standard QA, not a workaround.

Does it work where there's no GNSS signal at all?

Yes — that's what the fused LiDAR + visual SLAM is for. The scanner holds its trajectory through stairwells, tunnels and interiors without satellites, and the positioning plate lets you tie those scans to real-world coordinates.

Workflow & data

Can I merge S20 scans with my drone data?

Yes. Because the S20 outputs RTK-georeferenced clouds in real-world coordinates, handheld and aerial datasets register into one continuous model — interiors and ground-level detail from the S20, roofs and overviews from the drone.

What file formats does it output, and will they open in my software?

Point clouds export in standard formats (LAS/PLY and others) that load directly into CAD, BIM and GIS packages, plus common point cloud tools. Processing runs through the SHARE app in the field or SHARE PointClouds Studio on desktop.

Do I have to process in SHARE's software?

No. The raw data is open — you can run your own SLAM pipeline, and the pose-tagged photos support photogrammetry, mesh generation and 3D Gaussian splatting workflows. An open SDK and hardware interface also allow integration with robotic platforms.

How do I get RTK corrections in the field?

The S20 connects to AUSCORS — Australia's national NTRIP network — over your phone's data connection, giving you a fixed RTK solution across most of the country. We set this up with you during handover.

In the field

How long does it run, and how much can I scan in a session?

About 150 minutes per battery, capturing 200,000 points per second, with 256 GB of expandable storage. Batteries hot-swap via the quick-release handle, so coverage is limited by your legs more than the hardware.

What conditions can it handle?

Rated for -20 °C to +50 °C, in an aluminium body weighing just over 1 kg. Like all LiDAR, heavy rain and reflective wet surfaces degrade results — scan in dry conditions where the spec matters.

Support

What warranty and support do I get?

A 12-month warranty backed by Australian Consumer Law, with support from our Melbourne team — phone, email, and the same engineers who did your handover.

Surprisingly great slam scanner

Works really well and data is very accurate. Very surprised how well it performs. So far I used it only with RTK NTRIP service. Check shots are well within 3cm. Software is very good not great. I think within few upgrades it'll get there. For the price it's a great tool for asbuilt surveys.

Accurate, easy to operate

Highly recommended for interior and exterior 3D capture.It works smoothly and very accurate. I compared it to another slam scanner Inhave and it’s much better in all parameters.

Share S20 Slam, GREAT scanner.

Well packed, all the stuff included, good comunication !!! Thanks Share guys !!!!

Surprisingly great slam scanner

Works really well and data is very accurate. Very surprised how well it performs. So far I used it only with RTK NTRIP service. Check shots are well within 3cm. Software is very good not great. I think within few upgrades it'll get there. For the price it's a great tool for asbuilt surveys.

Accurate, easy to operate

Highly recommended for interior and exterior 3D capture.It works smoothly and very accurate. I compared it to another slam scanner Inhave and it’s much better in all parameters.

Share S20 Slam, GREAT scanner.

Well packed, all the stuff included, good comunication !!! Thanks Share guys !!!!

Scan something you actually need

Book a free on-site demo. We'll bring the S20, scan your site, and hand you the point cloud before we leave.
