Thermalmapper

Send a report, not a folder.

Import a job folder. Mark the faults. Export a branded PDF they can action. Free forever. Unlimited reports. Leave your details and we email the download.

Get the download

A card of R-JPEGs is not a report

You land with a card of R-JPEGs. DJI Thermal Analysis Tool can read a frame. It will not lay out A4. Most crews paste screenshots into Word. The asset owner gets a folder, a spreadsheet, and a meeting they did not ask for.

What you can do in this build

  • Mission, not a single frame

    Drop in the whole folder. Thermalmapper reads GPS, gimbal and radiometric data on the PC. The project saves as a local .tmap, so reopen keeps zoom, palette, notes and page order.

    Thermalmapper export view of an electrical inspection report

  • Thermal inspect

    Ironbow and the other palettes. Gradient and threshold are display-only, so they flip without a re-extract. Point, box, line and circle on thermal or visual, with auto labels (S1, L1, R1), severity chips and notes. Temperatures come from the DJI SDK, not from pixel colour. Set emissivity, reflected temp, distance and humidity per image, or batch them on Setup.

  • Findings on a map

    Each shot gets a GPS pin and a projected field-of-view cone on Esri imagery, from heading, gimbal and camera FOV. The cover page shows the whole mission. Overlay GeoJSON, KML, CSV, shapefile, GeoTIFF or DXF. Tiles come online. Processing stays local.

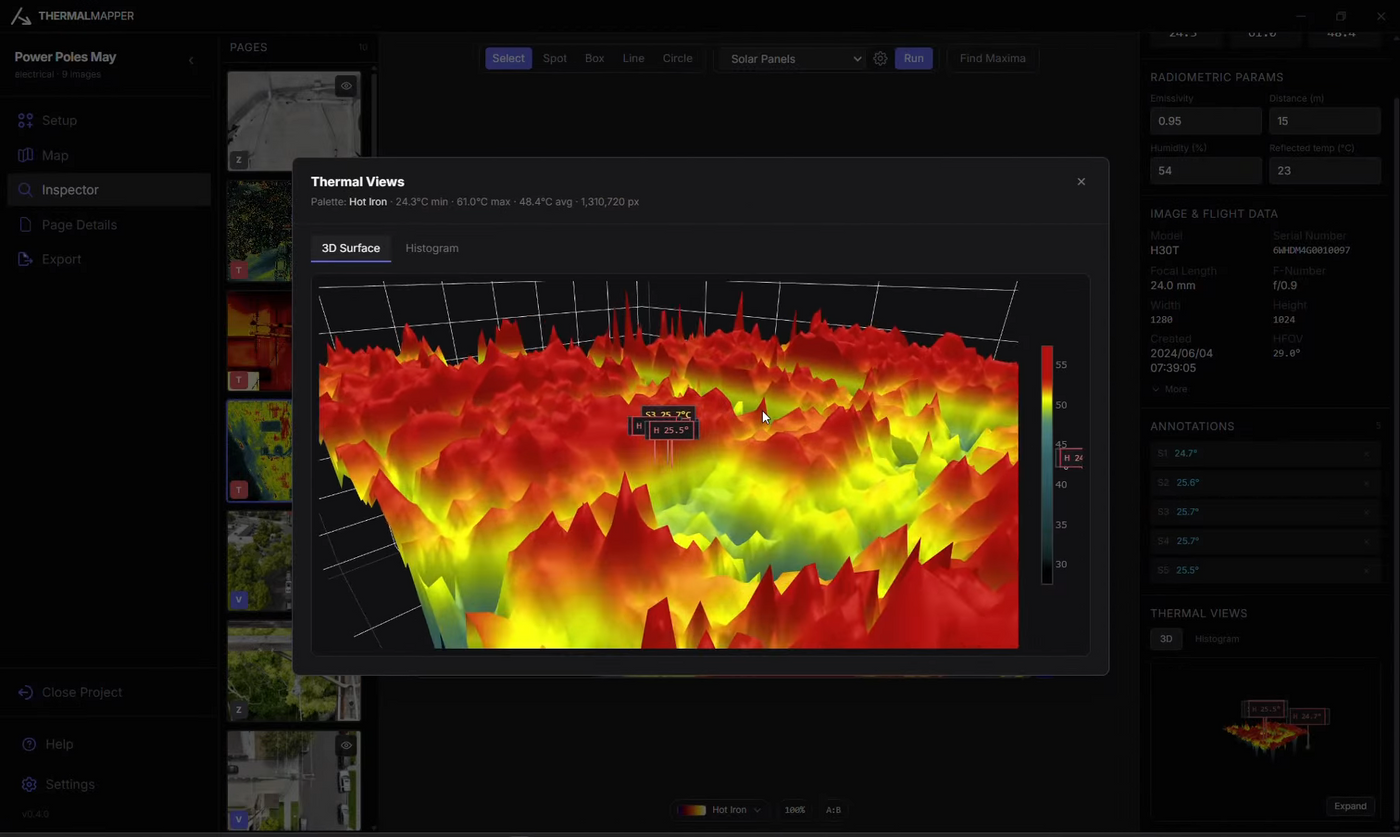

    Thermalmapper thermal map with temperature metadata

  • Client-ready A4

    Your logo and business details on every page. Cover and content from blocks: image, RGB and thermal pair, map, measurement table, conditions, headers, text. Drag to reorder. The page editor is the PDF. Export branded PDF, plus CSV and GeoJSON for the findings. No client portal.

  • Severity that matches the job

    Editable templates: electrical (NETA / NFPA 70B), solar (IEC 62446-3 style ΔT), building and roofing (AS 4349.1), or general Low / Med / High / Critical. ΔT against a reference you set.

  • Operator setup

    Company details, logos, inspector list, units and report defaults live on the PC, not in the job file. Find Maxima for hotspots. Fill ambient, wind and RH from mission GPS and time (Open-Meteo).

Three steps from card to report

  1. Fly the job

    Capture R-JPEGs with an H20T, H30T, M4T, M30T or Mavic 3T.

  2. Open the mission

    Drop in the folder. Thermalmapper reads GPS, gimbal and radiometric data locally and saves a .tmap you can reopen.

  3. Export the PDF

    Lay out A4 so what you see is the file. Branded PDF, plus CSV and GeoJSON for findings. No client portal.

Built for Australian thermal inspectors

  • Solar inspection crews

    Solar inspection crews

    IEC 62446-3 style ΔT on modules and strings, so O&M walks the right row instead of a folder of frames.

  • Electrical inspectors

    Electrical inspectors

    NETA / NFPA 70B severity on the frames, with temperatures from the DJI SDK.

  • Building and roofing

    Building and roofing

    AS 4349.1 style templates for envelope and roof work. Same A4 file the asset owner can action.

Questions, answered

Product

What is Thermalmapper?
Thermalmapper is desktop inspection software for a radiometric drone flight. Import the job folder, mark the faults, and export a branded A4 PDF they can action. Findings also export as CSV and GeoJSON. There is no client portal. Mirrormapper builds it. It is not DJI Thermal Analysis Tool with a skin.
Is Thermalmapper free?
Yes. Free forever. Unlimited reports. No credit card. No licence fee, no seat count, and no renewal. The download is the software. We do not sell a paid Thermalmapper plan on this page.

Download

How do I get the download?
Use Get the download and leave your name, email, business and phone number. We email the installer to that address. There is no anonymous link on the page, and nothing is added to the Shopify cart.

Workflow

What cameras does it take?
R-JPEG from the H20T, H30T, M4T, M30T and Mavic 3T.
What does the report include?
A branded A4 PDF from a page editor that matches the file: cover plus content blocks (image, RGB and thermal pair, map, measurement table, conditions, headers, text). Measurements on the frames, GPS pins and field-of-view cones on Esri imagery, and severity from the template you pick. CSV and GeoJSON for the findings. It does not stitch an ortho.

Coming soon

Does it include AI models?
Not yet. Auto-annotation models for solar, electrical and building work are coming soon. They are not in this build. Custom AI Models is a separate Mirrormapper service if you need a trained model before those land in Thermalmapper.

Get the download

Name, email, business and number. We email the installer.

We email the installer.
