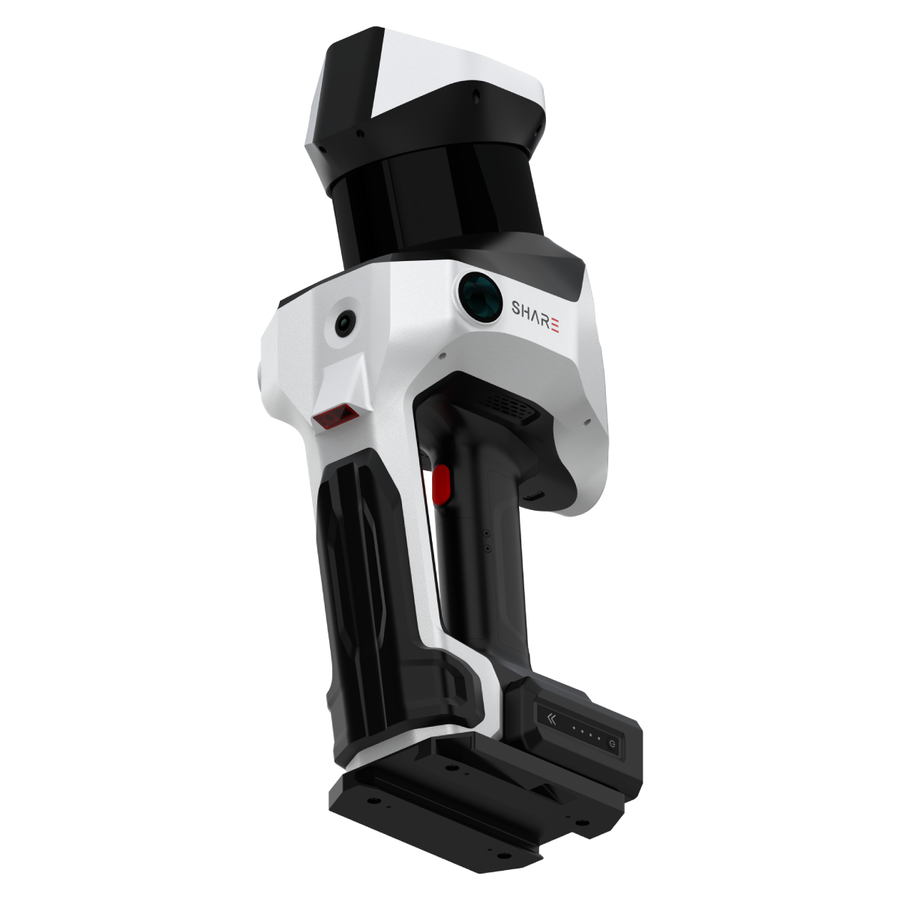

SHARE C10-16
The entry point into the C10 series - a professional-grade handheld scanner built for complex environments and precis...
From
$14,999.00
Pro-grade handheld LiDAR
Survey-grade 3D models in minutes, not hours. Control points without the full ground crew.
The old way to accurate 3D meant dozens of control points, repeat site visits and days of post-processing. The S100 replaces that with high-channel LiDAR and tight RTK — scan a processing plant, open-cut pit or large asset and move from scan to usable point cloud or 3DGS model fast. 16 or 32 channels, 300 m range, built for the complex geometry lighter scanners can't hold.
Choose your model
Every unit ships from Melbourne with local setup, training and support.
SHARE C10-32
Step up from the C10-16 with a 32-channel mechanical LiDAR head pushing 640,000 points per second. Same ergonomic bac...
From
$23,999.00

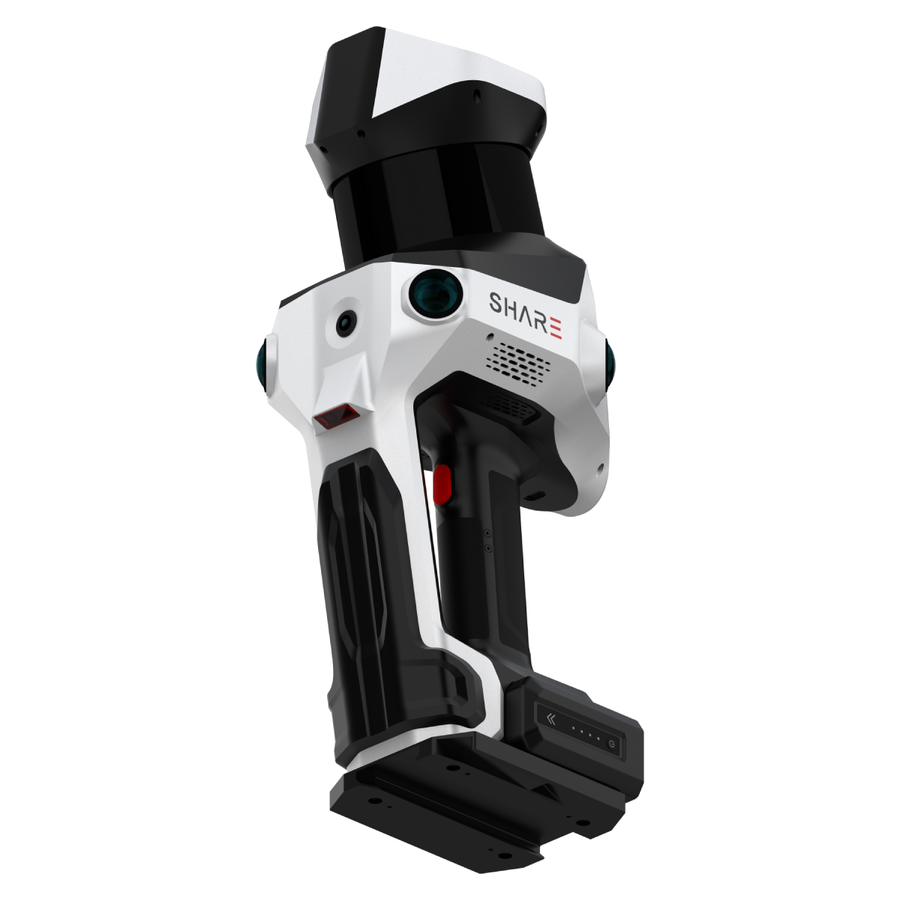

SHARE C10-32 Pro
The professional flagship of the C10 series. 32-channel LiDAR with a 300-metre measuring range, four 20 MP cameras wi...
From
$34,999.00
Compare Models
| Product Name | |||
|---|---|---|---|
| LiDAR Channels | 16 | 32 | |
| Point Cloud Rate | 320,000 pts/s | 640,000 pts/s | |
| Measuring Range | 0.05 ~ 120 m | 0.05 ~ 120 m | 0.5 ~ 300 m |
| Camera Quantity | 2 | 4 | |
| Sensor Size | 1-inch (13.13×8.76mm); Pixel Size 2.4μm | ||
| Effective Pixels | 16 MP | 20 MP | |
| Dimensions | 386.8mm×152.7mm×174.4mm | ||
| Weight | 2438g | 2328g | |
| Wi-Fi | Wi-Fi 6, 2.4G/5G; 20m | ||
| Storage | 1TB SSD | ||
| RTK Accuracy | Horizontal 0.8cm+1ppm; Vertical 1.5cm+1ppm | ||
| Backpack System | Standard Ergonomic Backpack System | ||
| Battery Capacity | 49.436Wh (3400mAh) × 2 | ||
| Operating Time | Approx. 180 mins | ||
| Point Cloud Thickness | Within 5mm | ||
| Relative Accuracy | Better than 1cm | ||
| Absolute Accuracy | Better than 5cm | ||
Scan something you actually need
Book a free on-site demo. We'll bring the S20, scan your site, and hand you the point cloud before we leave.
