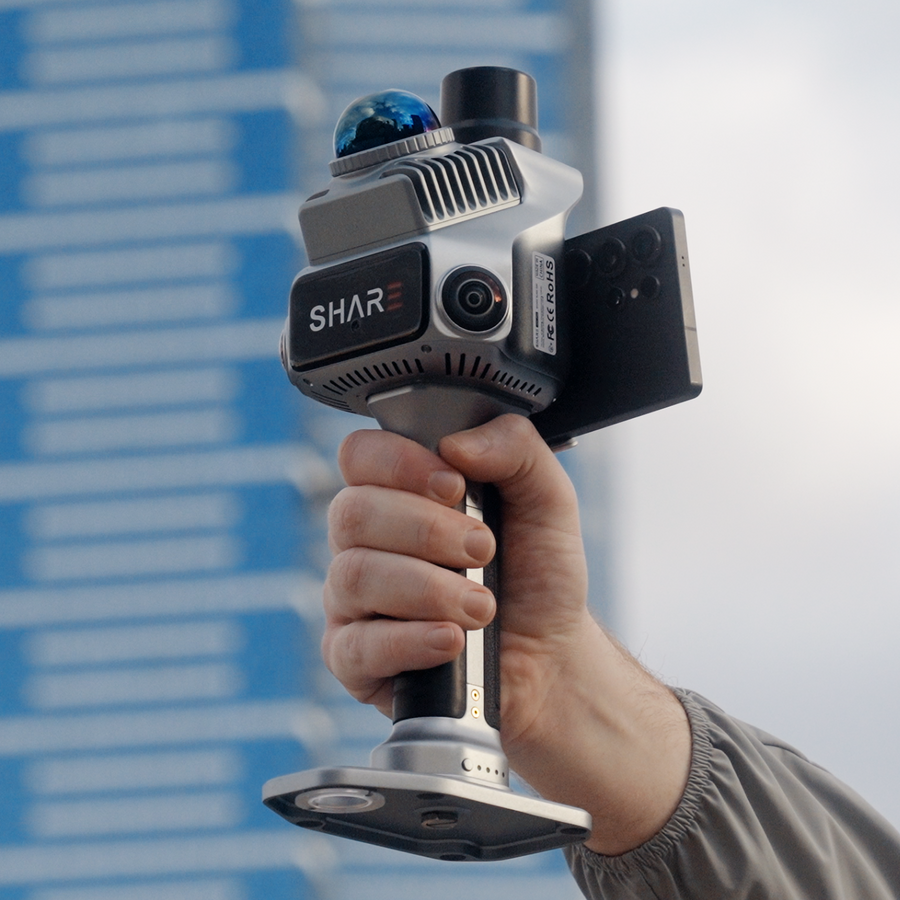

SHARE C1 Pro
High resolution RTK handheld. Absolute coords when you need them.
- Built-in RTK
- 2 × 16 MP
- Hard carry case
From$7,999
to
$14,133
Handheld SLAM scanners
C1. Scan the rooms a drone cannot.
Colourised, RTK-georeferenced point clouds of interiors, stairwells and tunnels, finished on site. Sub-5 cm absolute on C1 Pro, no base station.
- Product setup support
- 12-month Australian warranty
- Product setup support
Choose your scanner
Same handheld workflow across the range. The difference is positioning. C1 for relative-accuracy jobs. C1 Pro when the deliverable needs real-world coordinates. Setup and training included.

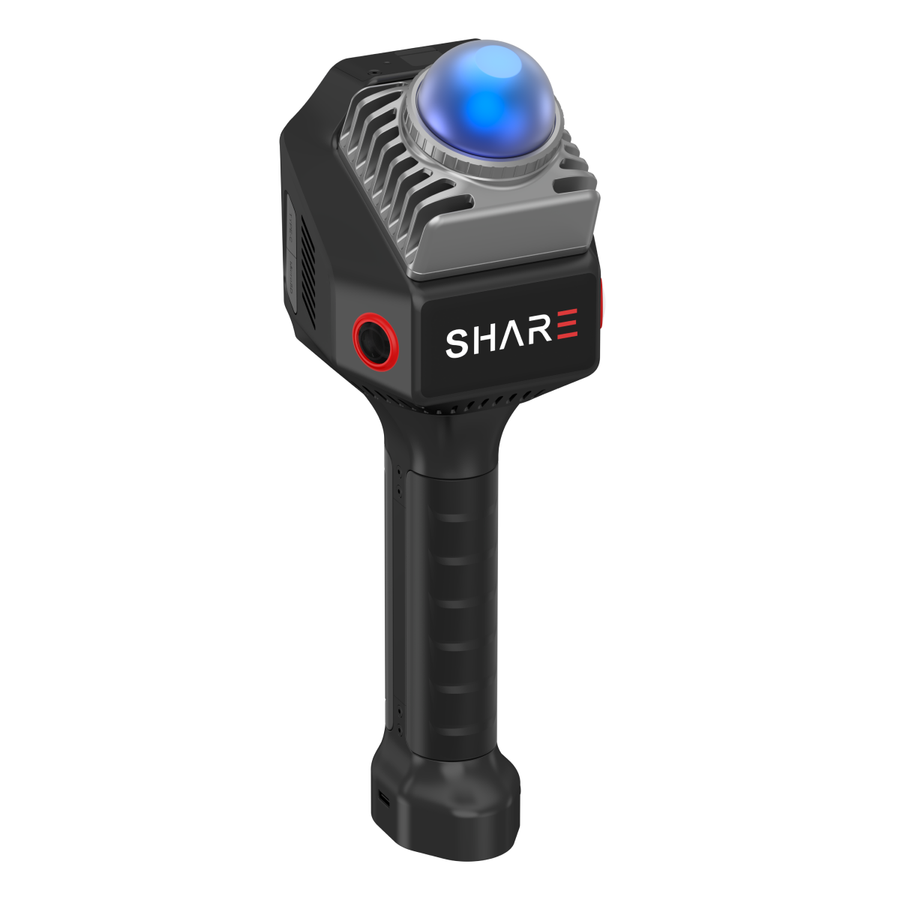

SHARE C1
Walk through. Walk out with a model.
- RTK upgrade later
- 2 × 2.3 MP
- Soft carry bag
From$6,199
to
$7,876
Capture it for posterity
One walk builds a dense colour cloud you can Gaussian splat and open later. The space stays as you left it, without a second trip.
Measure the fit-out
Walk the rooms once. The live cloud gives you dimensions for as-built and renovation work without chasing every wall with a tape.
Quality across the site
RTK-fixed walks keep absolute hold. Colourised returns stay dense on walls, ground and structure when the loop gets long.
Easy, Out of the Box
Pick it up, turn it on, start scanning. The C1 acquires an RTK fix in seconds - no base station setup, no targets.
Compare
How it compares
Side by side on sensor, range, cameras, shutter and RTK.
| Spec | ||
|---|---|---|
| LiDAR sensor | Livox Mid-360 | |
| RTK | Optional | Built-in |
| Cameras | 2 × 2.3 MP | 2 × 16 MP |
| Shutter | Electronic | Mechanical + electronic |
| Weight | 955 g | 1,079 g |
| Runtime per battery | 180 min | |
Payloads, Accessories, & Spares
No products match
Try adjusting your filters or search term.
Questions, answered
Choosing a model
C1 or C1 Pro?
C1 for interiors, stairwells and under cover when you already control the network. C1 Pro when mixed indoor and outdoor jobs need AUSCORS NTRIP so the cloud sits on real-world coordinates.
Why C1 instead of a tripod or a drone?
C1 is the walk through rooms a drone cannot reach and a tripod would station to death. Colourised SLAM, MapShare included, optional RTK when the model needs coordinates.
Who is the C1 series for?
Survey and AEC crews capturing interiors, stairwells, stockpiles under cover and GPS-denied rooms. If the site is a plant, pit or a long traverse, look at C10.
On the job
How do you carry a C1?
Handheld in the kit. Survey pole adaptor when you need height or a known mark. Unitree GO2 adaptor when you want hands free. Those last two are add-ons.
Can I put C1 on a drone?
No. C1 is a ground walk. For aerial capture we spec Matrice and the payload to the job.
Buying and delivery
What arrives in the box?
The scanner, batteries and the carry solution for that model: soft bag on C1, hard case on C1 Pro. Pole and dog mounts are separate lines. We confirm the kit on the quote.
What is not in the C1 kit?
A finished BIM model, a tripod-class control network, or a drone. The cloud is measured data. Drawings still need a person.
Data and software
What software is in the kit?
SHARE Capture on site. PointClouds Studio for processing. MapShare 50 GB for one year so clients open a browser link, not a ZIP.
Can we use C1 scans in CAD or Revit?
Yes as a spatial underlay. Export LAS, LAZ, E57 or PLY. After import the cloud is for viewing and measuring, not an editable BIM object by itself.
Scan something you actually need
Book a free on-site demo. We bring the C1 Pro, scan your site, and hand you the cloud to evaluate against your deliverable.
