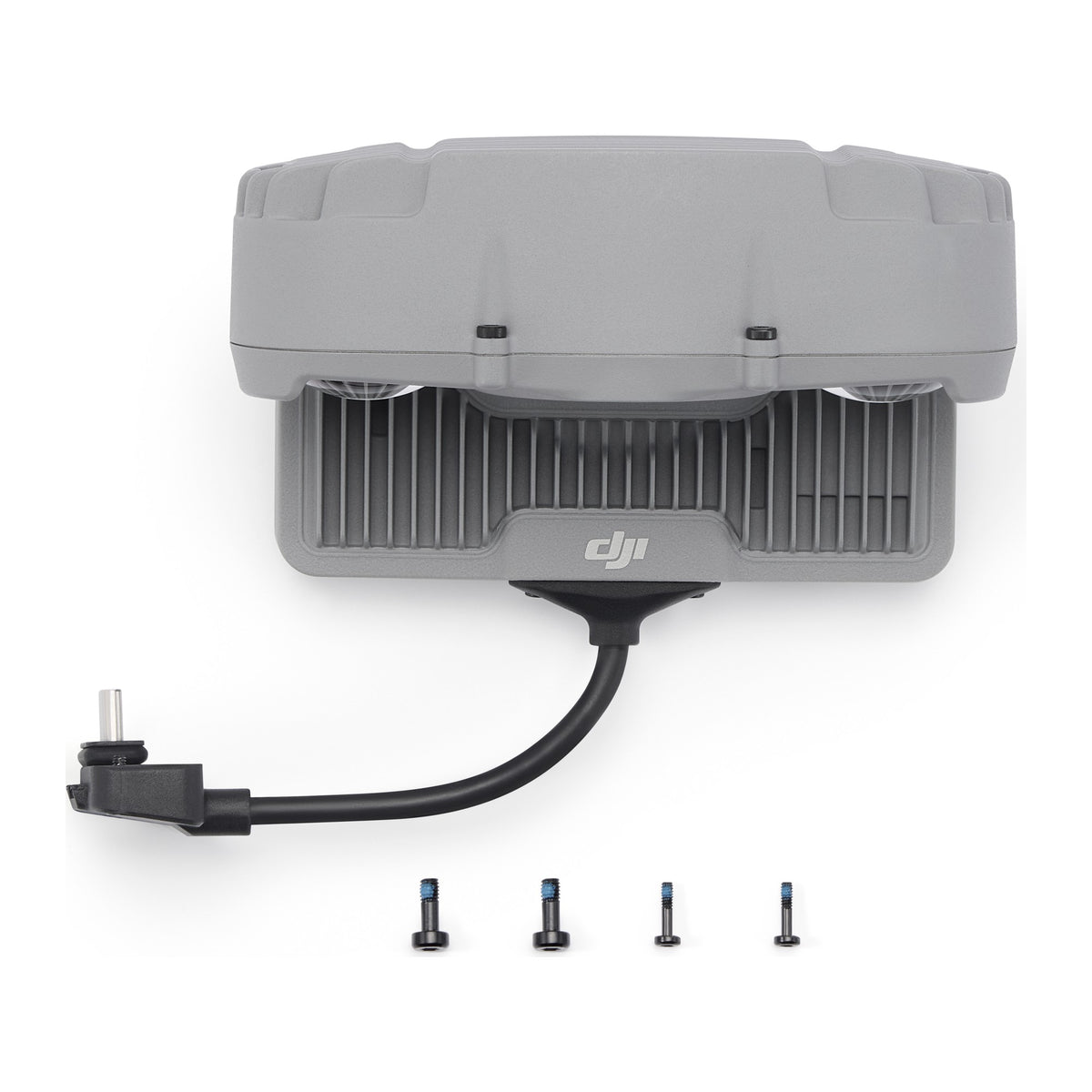

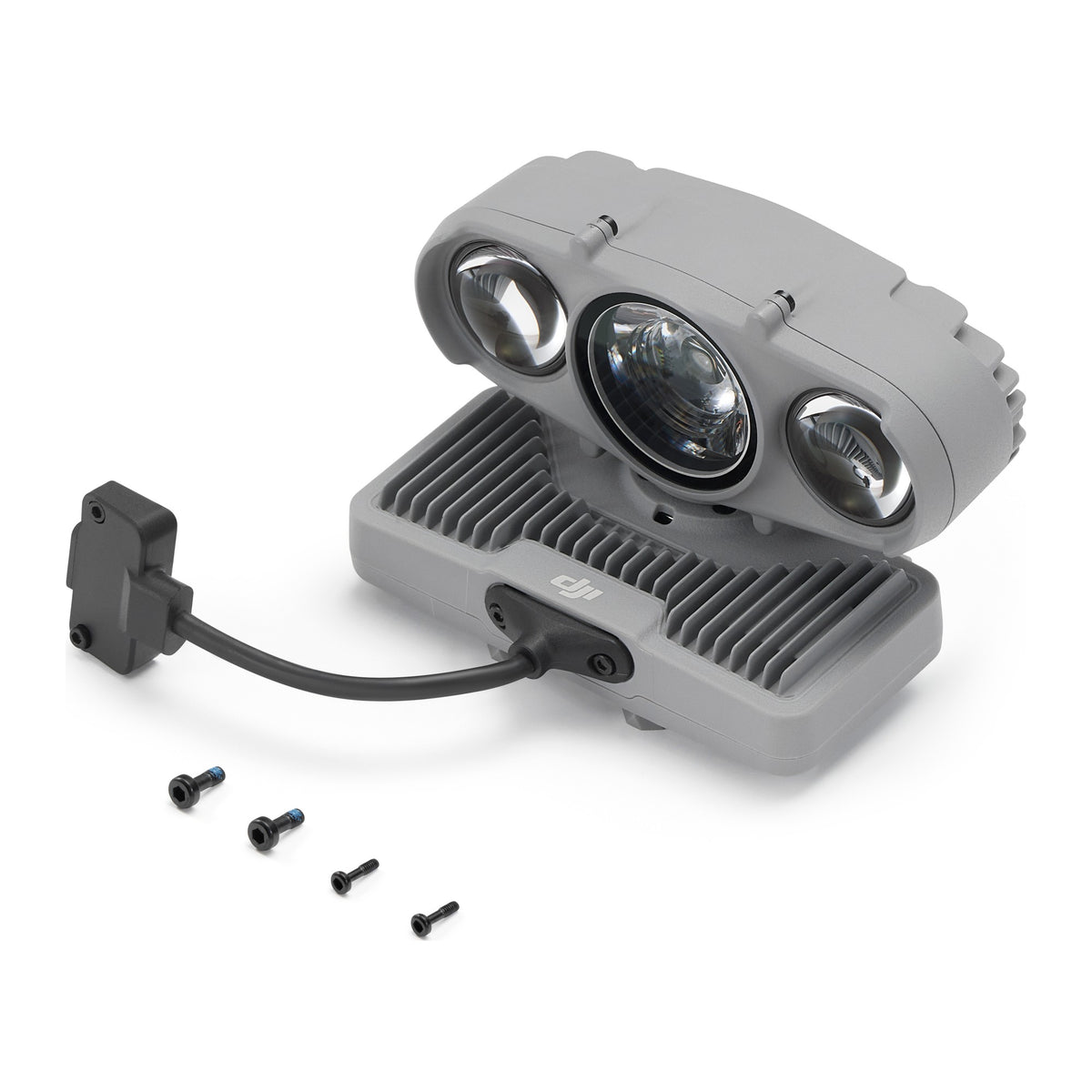

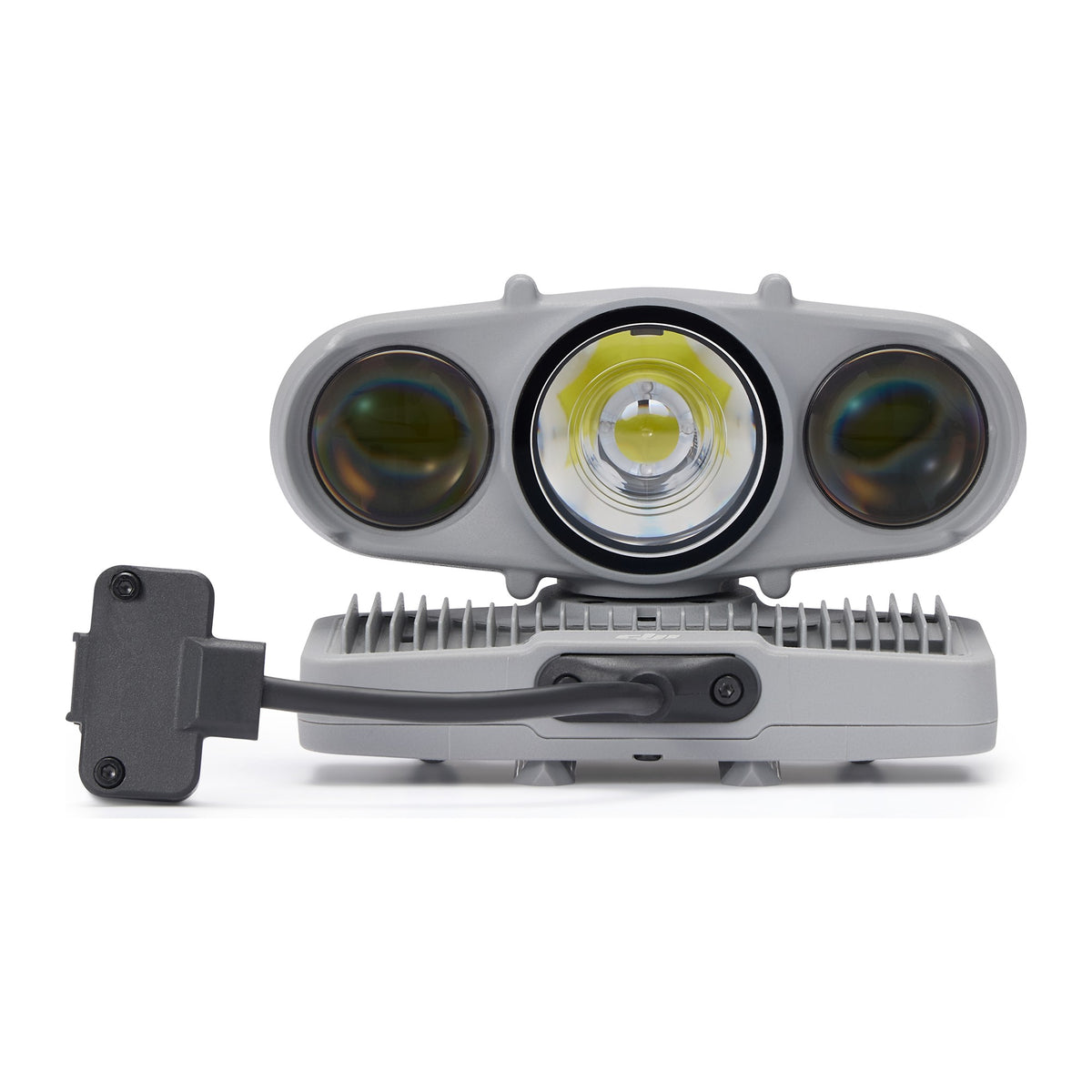

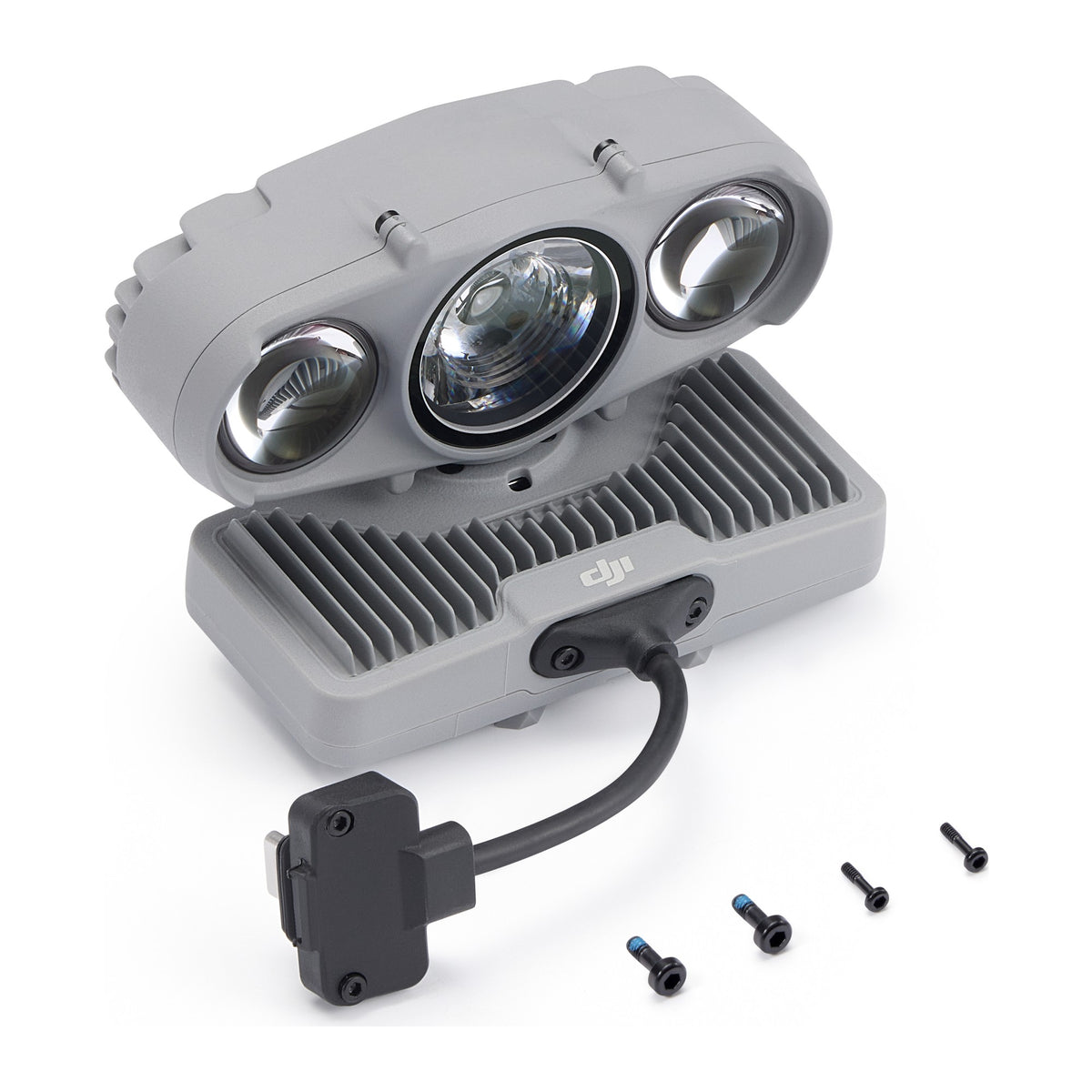

DJI AL2 Spotlight
Price and availability on request
What it does
The DJI AL2 Spotlight fits Matrice 5TD. Spot and flood modules light a target up to 100 m away, at 11 lux in Spotlight mode, about 2.6 times as bright as the AL1. The beam follows the camera view, and Auto mode switches between spot and flood with the zoom level.

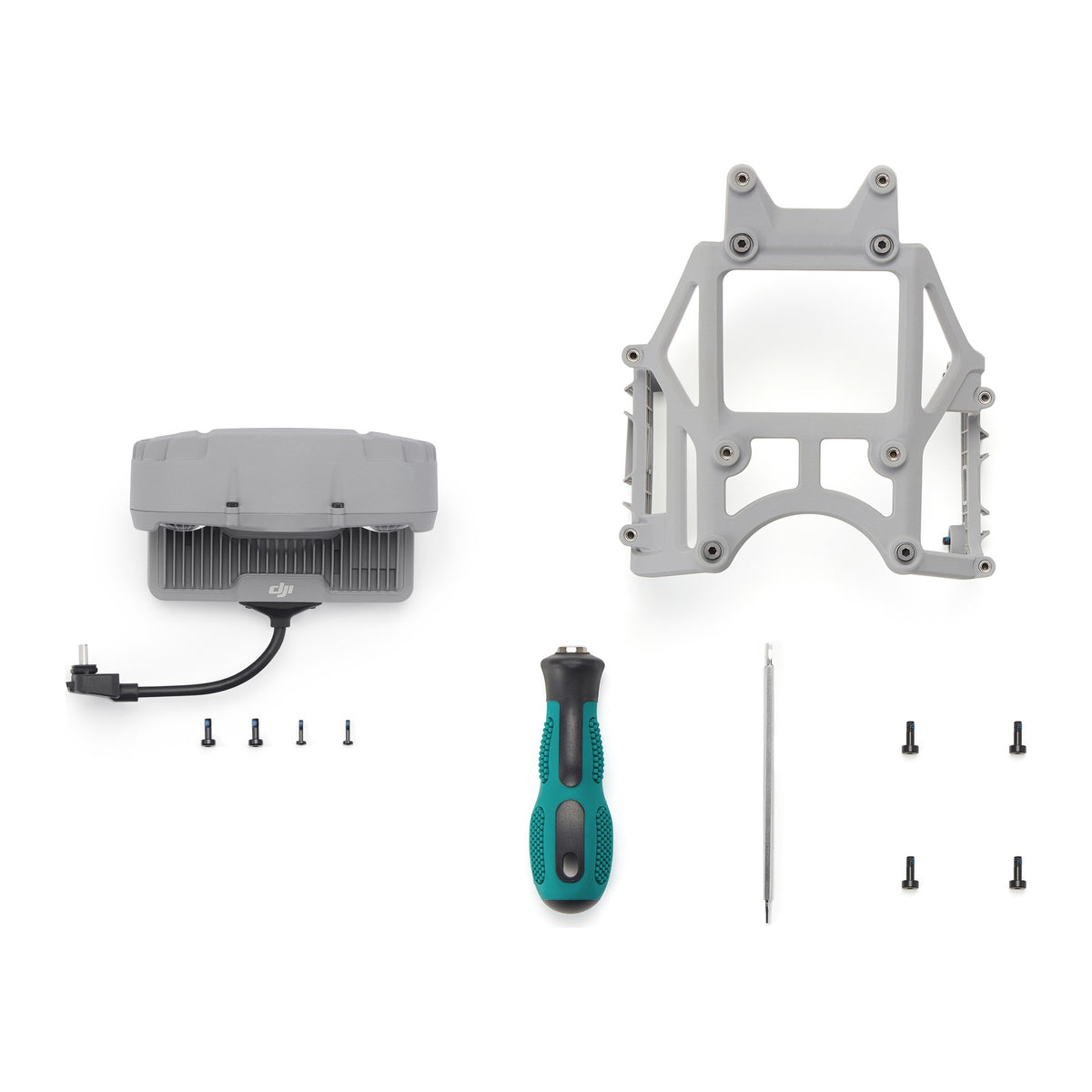

It mounts on the right side with the Accessory Mount, beside the AS2 Speaker on the left. It tilts up to +90° and is rated IP55.
Get a quote from Mirrormapper for pricing and availability.
Specs
- Fits
- Matrice 5TD
- Mount
- Right side, Matrice 5TD Accessory Mount
- Illuminance at 100 m
- 11.2 lux (spot) · 2.7 lux (flood)
- Coverage at 100 m
- 500 m² (spot) · 1,300 m² (flood)
- Power draw
- 40 W spot · 18 W flood · 48 W both
- Modes
- Spotlight, Floodlight, Both On, Auto · fast and slow strobe
- Weight
- 115 g (without bracket)
- IP Rating
- IP55
FAQ
Which aircraft does the AL2 fit?
Matrice 5TD. It mounts on the right side with the Accessory Mount, so it can fly with the AS2 Speaker on the left.
How bright is it?
11 lux at 100 m in Spotlight mode and 2.7 lux in Floodlight mode, about 2.6 times as bright as the AL1. At 100 m the spot covers 500 m² and the flood 1,300 m².
Does the beam follow the camera?
Yes, by default. Gimbal follow keeps the beam on the camera view, and Auto mode switches between spot and flood with the zoom level. Turn follow off and the light holds its current angle.
What lighting modes does it have?
Spotlight, Floodlight, Both On and Auto, plus fast and slow strobe for alerts. It tilts from -90° to +90°, so it can also light upward.
Does it affect obstacle sensing?
Yes. Visual obstacle sensing switches off while the light is on, and carrying it affects flight time.
