Mirrormapper

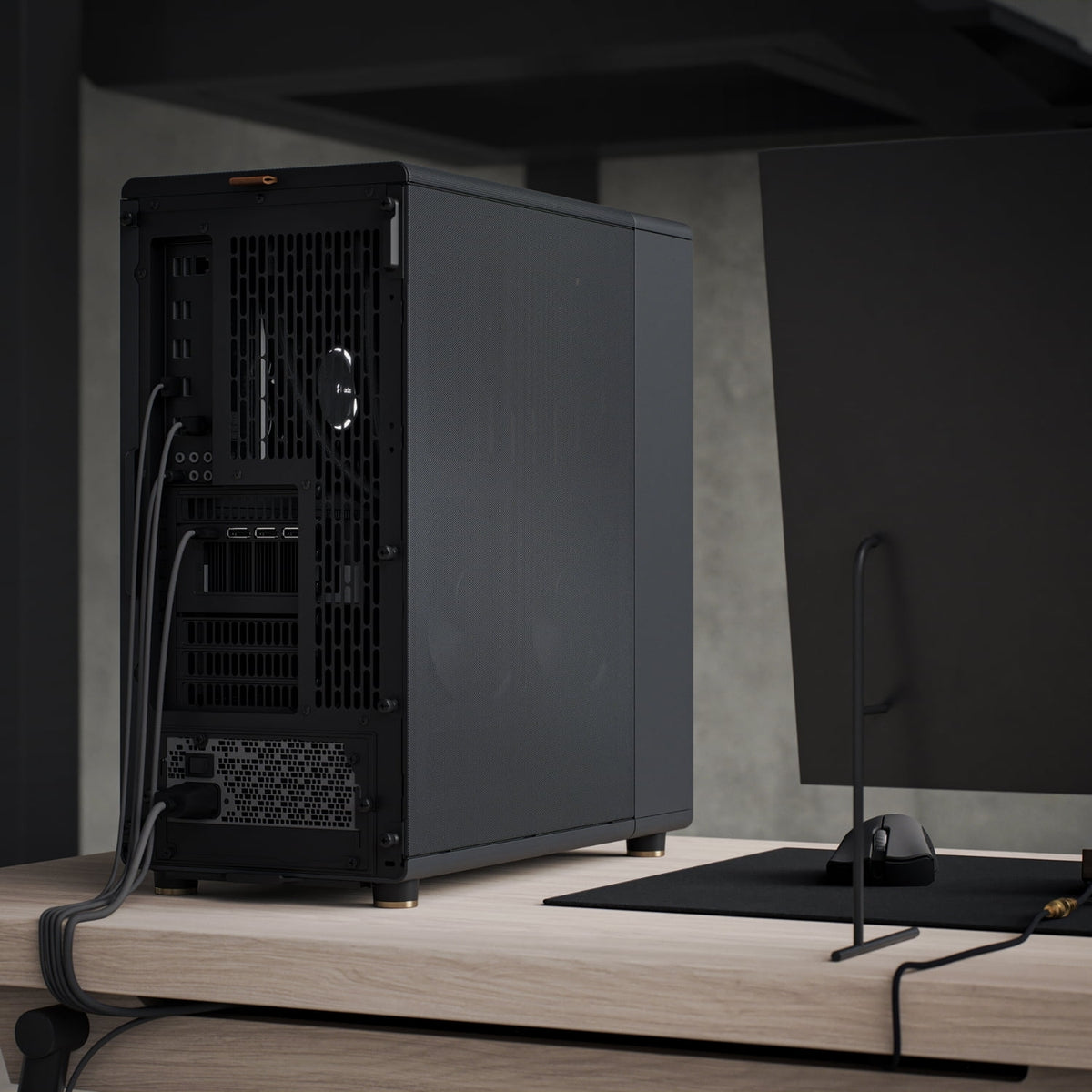

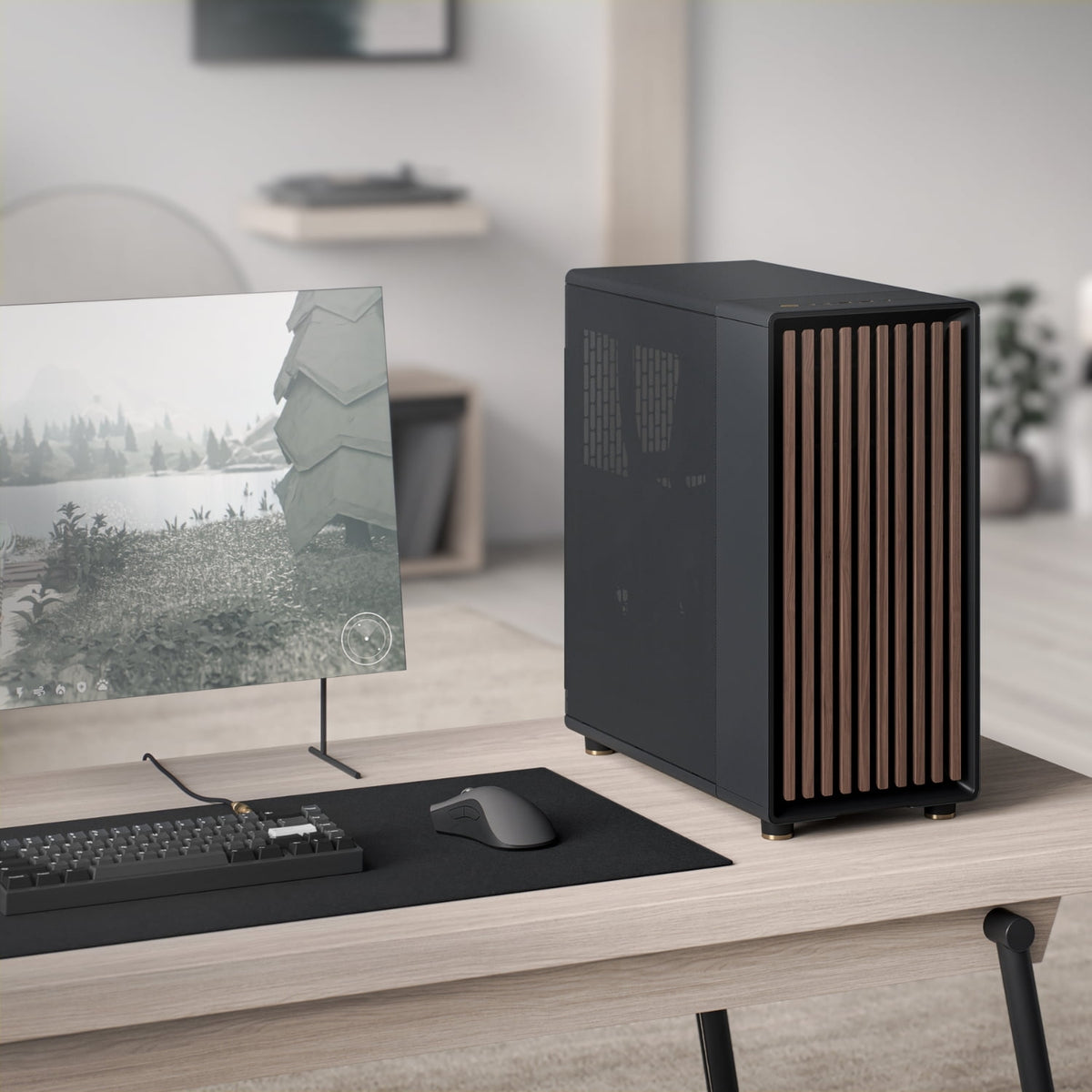

Processing Desktop
Office machine sized to the cloud you process.
- Three job sizes
- GPU for Studio splats
- Fast project SSDs
Pay with
-
Setup & training
included -
12-month
Australian warranty -
Express shipping
Australia-wide
| Processor | AMD Ryzen 9 9900X |
|---|---|
| Graphics | NVIDIA RTX 5070 |
| GPU memory | 12 GB |
| Memory | 64 GB DDR5 (128 GB on quote) |
| System drive | 4 TB |
| Data drive | Optional 4 TB |
| Photogrammetry block | Up to ~1,500 (20–40 MP) |
| Gaussian splats | Medium scenes |
| Point cloud size | ~300 million points |
| While it solves | CAD or GIS with one solve |
| Best for | SHARE walks, small UAV blocks |
Choosing and buying
How do I pick Small, Mid or Large Scale?
Match the level to the block you run most weeks, not the biggest job you might ever win. Small Scale covers SHARE walks and photogrammetry up to about 1,500 photos, with clouds around 300 million points. Mid Scale is the regular 2,000–4,000 image UAV block. Large Scale is for 5,000–8,000 photo class work and clouds toward a billion points. Tell us the last three jobs you processed and we will quote the level that fits.
Why is there no price on the page?
GPU, RAM and SSD move with the job and with what we can ship this month. The page is quote-only. Select the level, send the form, and we come back with a configured tower. You can still choose a variant and request that quote. Nothing adds to cart at a catalogue price.
Can I buy the desktop, or is this only a spec sheet?
You can buy it. Choose Small, Mid or Large Scale and Get a quote. We confirm the build, lead time and freight, then raise the order. The machine ships as a configured Windows desktop. SHARE Studio is installed at handover.
On the job
Will this run SHARE Point Cloud Studio and 3DGS?
Yes. SHARE's current download page asks for Windows 11, an NVIDIA RTX 3060 or above, 8 GB VRAM for point cloud mapping and 12 GB for 3DGS, and 64 GB RAM. Small Scale starts at 12 GB VRAM so splat work is in the published band. Mid and Large add GPU memory and RAM for bigger clouds. We install Studio at handover and walk a sample project through.
Does it also run DJI Terra and other photogrammetry?
That is the other half of the spec. The same GPU and RAM bands are what we quote for Terra, Metashape-class blocks and Gaussian splat tools. Tell us which packages you invoice. We confirm driver and disk layout against that list on the quote, rather than claiming every title in one line.
Can I keep CAD or GIS open while a block is solving?
Small Scale is sized for CAD or GIS beside one solve. A second heavy job at the same time is a stretch. Mid Scale leaves room for a smaller side job. Large Scale is the one we quote when two solves and CAD need to sit together.
Buying and delivery
Can you change RAM or SSD from the table?
Yes. The table is a starting build. RAM and both SSDs are the usual levers. Say how many photos you keep online and whether the archive lives on the tower or on a NAS. We quote that layout.
Data and software
I would rather build the PC myself. Where do I start?
Leave your details on the workhorse PDF mid-page. It covers what VRAM, RAM and the two SSDs actually buy, and how to read Small, Mid and Large Scale against your own jobs. We still quote a configured tower if you would rather not buy parts.
Levels
Small, Mid and Large Scale
Typical quote builds. RAM and SSD change with the job. Pick a level, then Get a quote.
| Spec |
Mirrormapper
Small Scale
This level |
Mirrormapper
Mid Scale
|
Mirrormapper
Large Scale
|
|---|---|---|---|
| Processor | AMD Ryzen 9 9900X | AMD Ryzen 9 9950X | AMD Ryzen 9 9950X |
| Graphics | NVIDIA RTX 5070 | NVIDIA RTX 5080 | NVIDIA RTX 5090 |
| GPU memory | 12 GB | 16 GB | 32 GB |
| Memory | 64 GB DDR5 (128 GB on quote) | 128 GB DDR5 (192 GB on quote) | 192 GB DDR5 |
| System drive | 4 TB | 4 TB PCIe 5 | 4 TB PCIe 5 |
| Data drive | Optional 4 TB | 4 TB | 4 TB |
| Photogrammetry block | Up to ~1,500 (20–40 MP) | Up to ~4,000 | Up to ~8,000 |
| Gaussian splats | Medium scenes | Large scenes | Dense, complex scenes |
| Point cloud size | ~300 million points | ~800 million points | ~1.5 billion points |
| While it solves | CAD or GIS with one solve | CAD, GIS and a smaller second job | CAD, GIS and more than one solve |
| Best for | SHARE walks, small UAV blocks | Regular mapping blocks | Large blocks and scanner archives |
Make your own workhorse
How to spec Small, Mid or Large Scale, or a parts list if you build it.
Next step
From raw data to signed-off outputs
Orthos, point clouds, thermal reports, and BIM-ready exports — tell us what you're producing and we'll wire the right capture and processing stack.
