ZH480-mini UV Camera

Pinpoint corona discharge from the air

Please call or request a quote below.

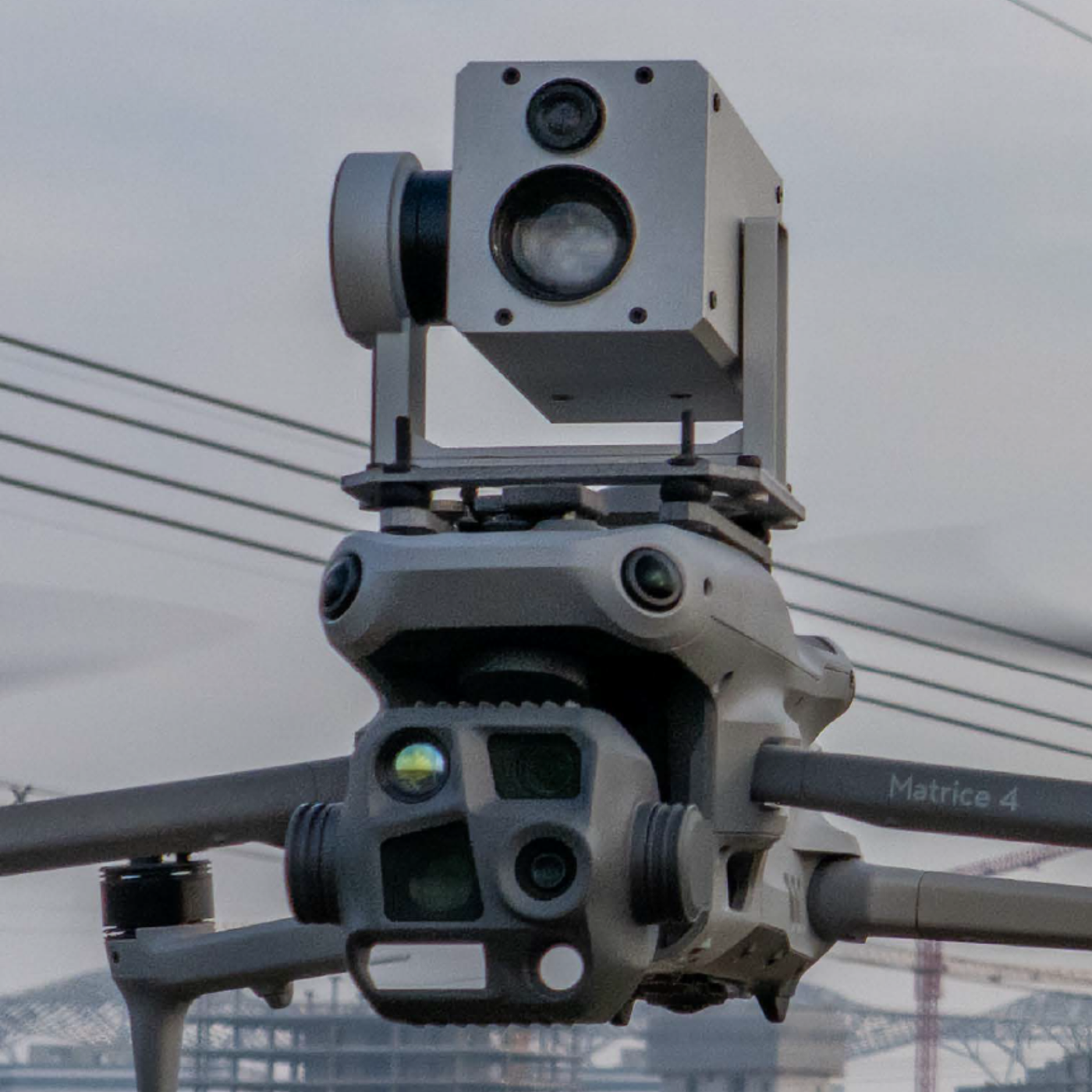

The ZH480-mini is a compact, drone-mounted UV camera for corona and partial discharge inspection. Top-mounted on a high-precision gimbal, it pairs with M4-series drones and shares their flight control and data link, so one pilot can run a full inspection solo.

Flexible Deployment, Ultra-Long Transmission

DJI Dock 3 can be flexibly deployed, redefining the paradigm of operations. For fixed deployments, signal quality can be enhanced by installing the next-gen D-RTK 3 Relay at elevated locations, allowing for flexible site selection of the dock. With the new DJI Enterprise app, deployment can be completed using just a smartphone. Additionally, for the first time, a DJI Dock supports vehicle-mounted deployment, enabling more efficient dispatch during urgent operations and long-distance inspections.

Excel In Low-Light Environments

The Matrice 4 series cameras feature larger apertures and intelligent low-light capabilities, significantly enhancing performance and improving operations during dusk and nighttime.

High-Performance Drones

The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

Transmit While Flying

Take off quickly and arrive at the emergency site to improve situational awareness. After enabling optimal route planning, use FlyTo Tasks to reach a designated point 1 km away and at 100m height within 100 seconds.

Ground Truth

Overview

Discover ZH480-mini UV Camera

Built for Small Drones

Top-mounts on M4 / M4T / M4TD via a high-precision PTZ, sharing the drone's flight control and data transmission — no separate ground system needed.

AI-Powered Corona Location

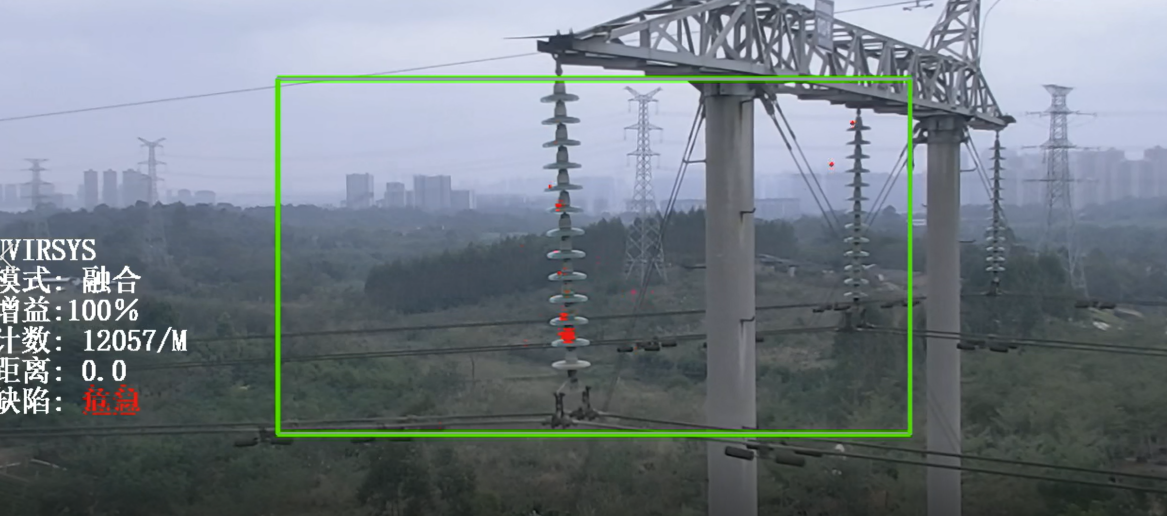

High-precision image registration plus an AI algorithm fuse UV and RGB frames to pinpoint partial discharge exactly where it's happening.

Quantitative Photon Counting

Five ROI counting boxes (full screen, quadrant, large, medium, small) deliver accurate photon numbers for grading defect severity, not just spotting them.

Stable & Shock-Resistant

Gimbal-stabilized for strong shock resistance and controllability in the air, capturing clean 1080P imagery and MP4 video to a 64G card.

Autonomous flights, not autonomous procurement

Site survey, install, commissioning, FlightHub 2, and operator training. We deploy the dock, not just ship the box.
