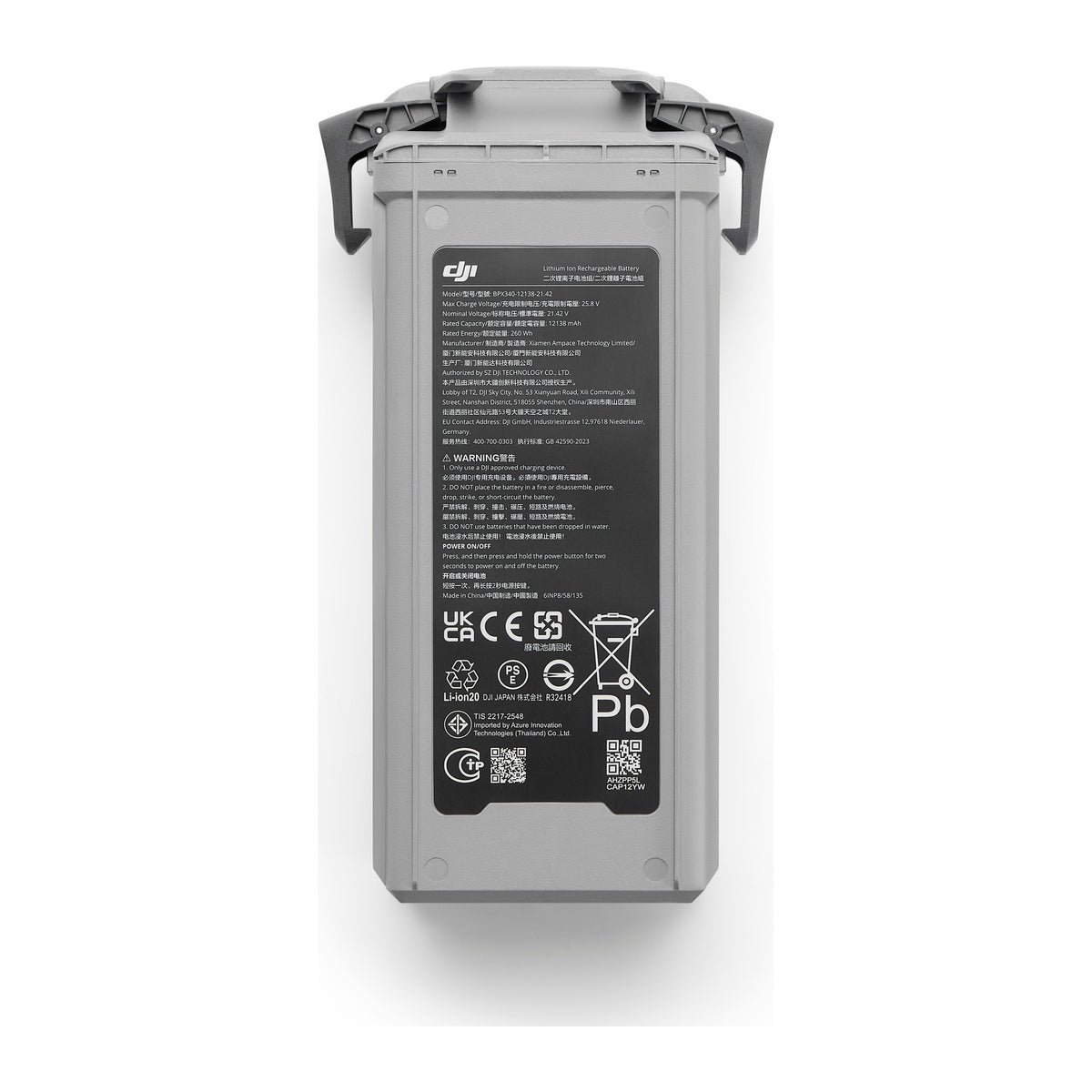

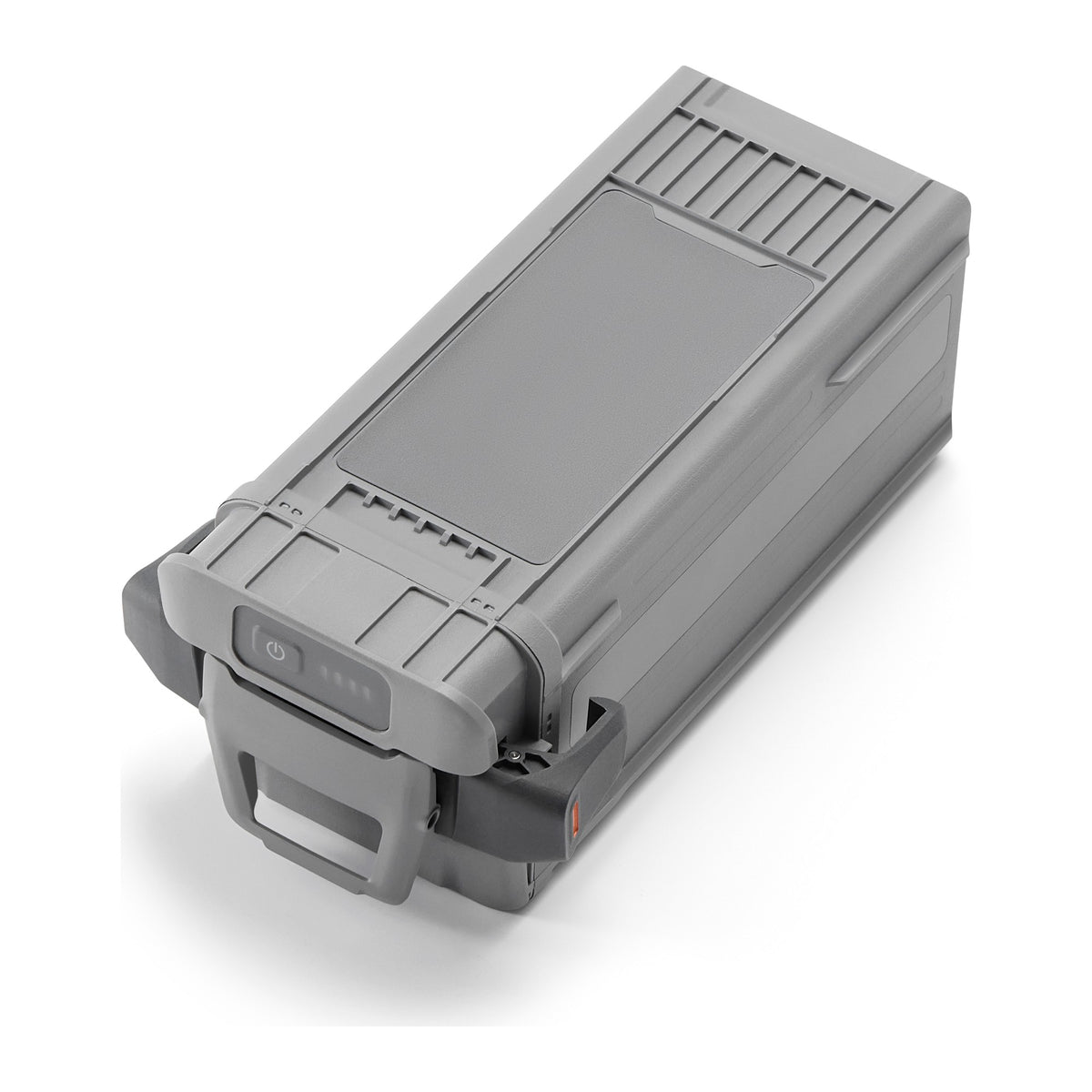

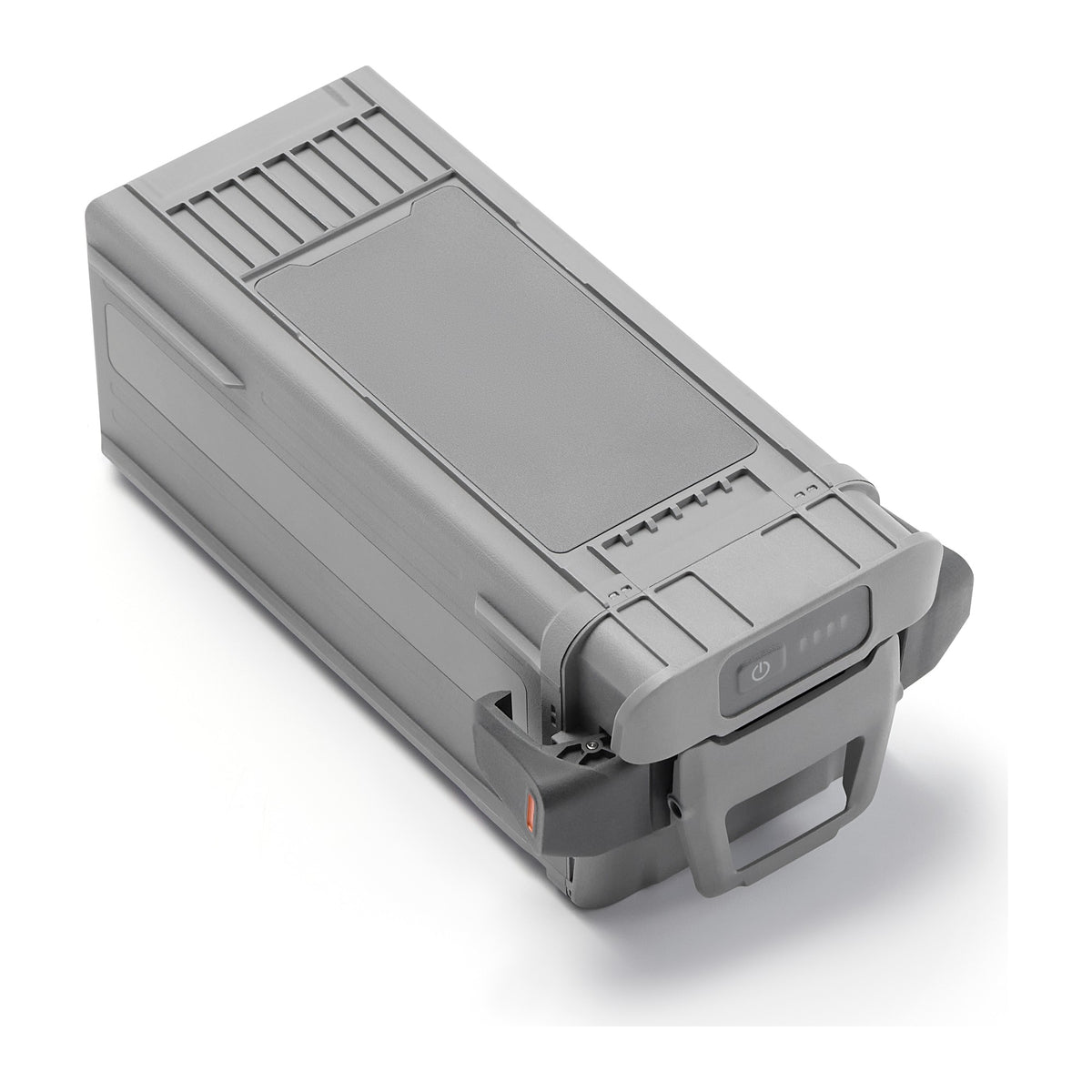

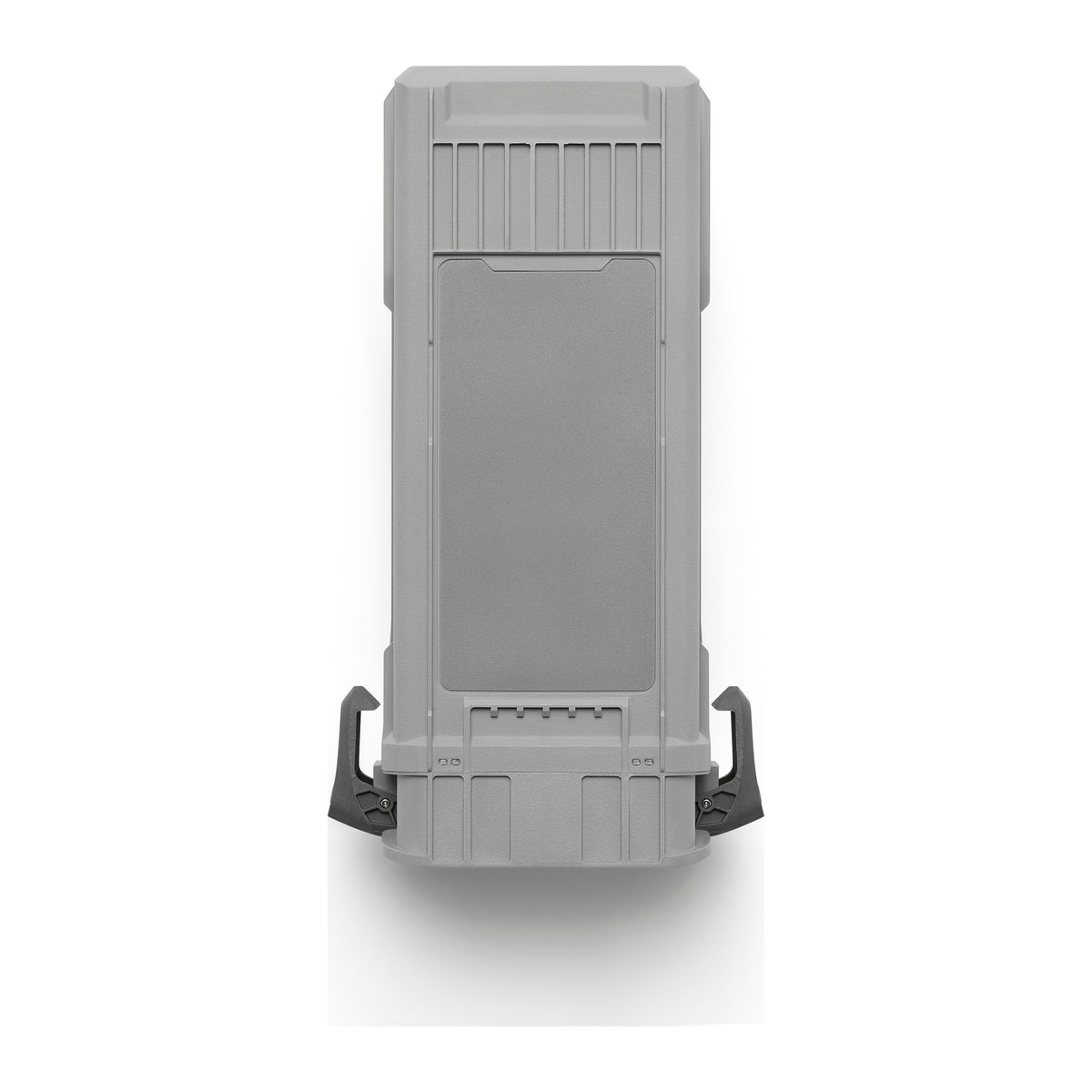

DJI Matrice 5TD Intelligent Flight Battery
Price and availability on request
What it does
The DJI Matrice 5TD Intelligent Flight Battery powers Matrice 5TD and is the battery Dock 4 swaps between flights. It holds 260 Wh (12,138 mAh at 21.42 V), weighs 925 g and is self-heating. Model BPX340-12138-21.42.
Dock 4 charges two at a time, 15 to 95% in 27 minutes, and draws on the batteries in its compartment as backup power. Each battery is rated for up to 400 cycles.
Get a quote from Mirrormapper for pricing and availability.
Specs
- Capacity
- 12,138 mAh at 21.42 V
- Energy
- 260 Wh
- Weight
- 925 g
- Cell type
- Li-ion 6S, LiNiMnCoO2
- Charging temperature
- +10 °C to +55 °C, self-heating
- Dock 4 charge time
- 15–95% in 27 min at 25 °C
- Cycle life
- Up to 400 cycles
- Fits
- Matrice 5TD
FAQ
Which aircraft does it fit?
Matrice 5TD. It's the battery Dock 4 swaps between flights.
How long does it take to charge?
15 to 95% in 27 minutes at 25 °C, with Dock 4 charging two at a time. Wireless charging in the aircraft is a backup and takes about two hours to reach 95%.
When does Dock 4 swap it?
Automatically after a flight, when the aircraft battery is below 79%. A manual swap can also be run from FlightHub 2 or the DJI Enterprise app.
How many cycles does it last?
Up to 400 cycles, as long as it spends no more than 100 days in total above 35 °C in any 12 months. It heats itself in the cold and charges from 10 °C to 55 °C.
How many batteries does a Dock 4 need?
Four for a full set: one in the aircraft and three in the compartment. The fourth bay stays free for the battery coming out.
