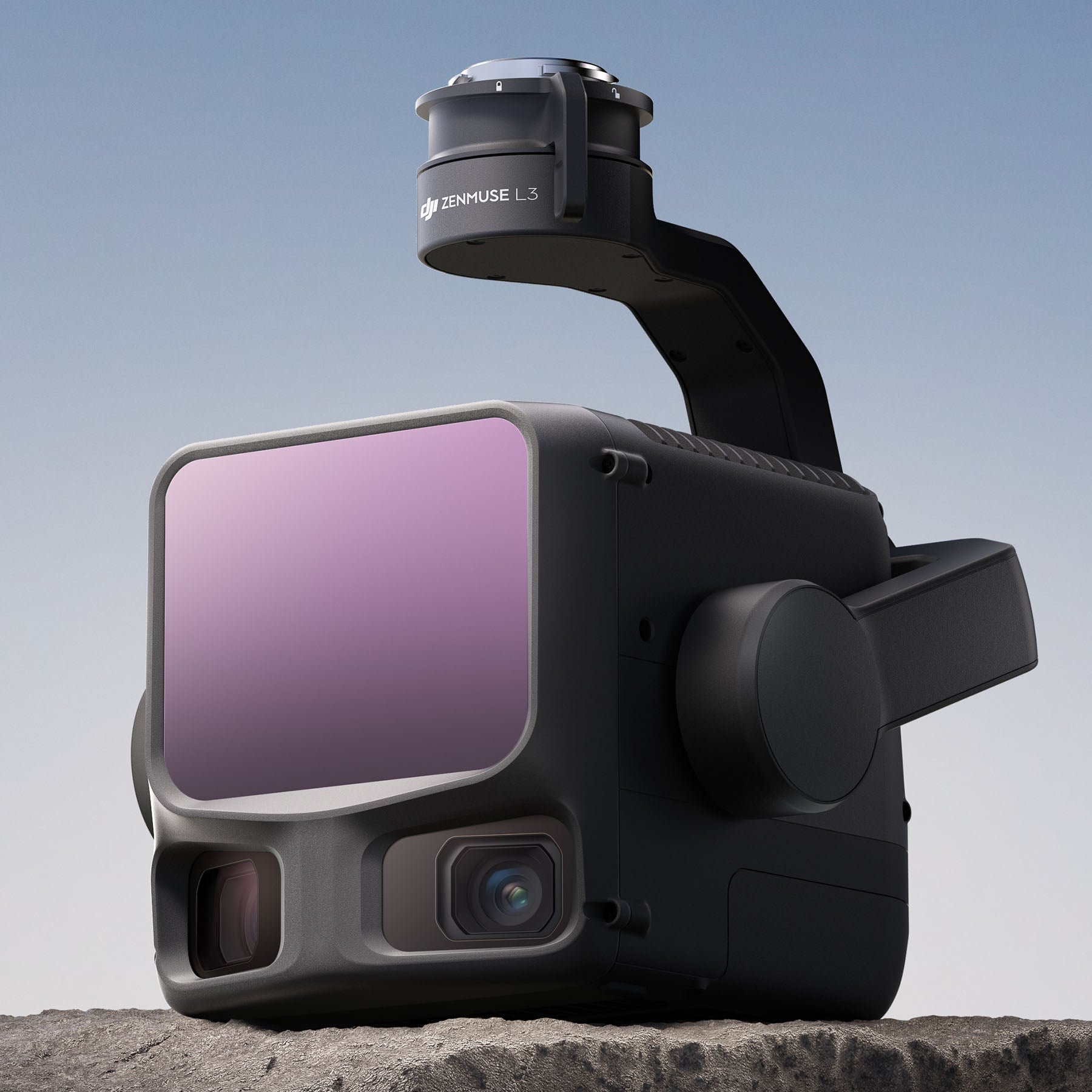

DJI Zenmuse L3

The DJI Zenmuse L3 integrates a high-precision LiDAR sensor with extended range, dual 100 MP RGB mapping cameras, 107° FOV, and 3-axis stabilization for up to 100 km² daily coverage in topography and urban planning. Compatible with Matrice series (firmware required), it launches November 4, 2025, with eye-safe 1535 nm technology for vegetation penetration and centimeter-level accuracy.

Discover DJI Zenmuse L3

Long Range, Wide Coverage
Long Range, Wide Coverage
Zenmuse L3 reaches 950 m detection at 100 kHz (100 klx, 10% reflectivity). Adjustable pulse rate adapts to scenarios. At 300–500 m altitudes, it delivers wide single-flight coverage and higher mapping efficiency.
Hardware Performance Redefined
Hardware Performance Redefined

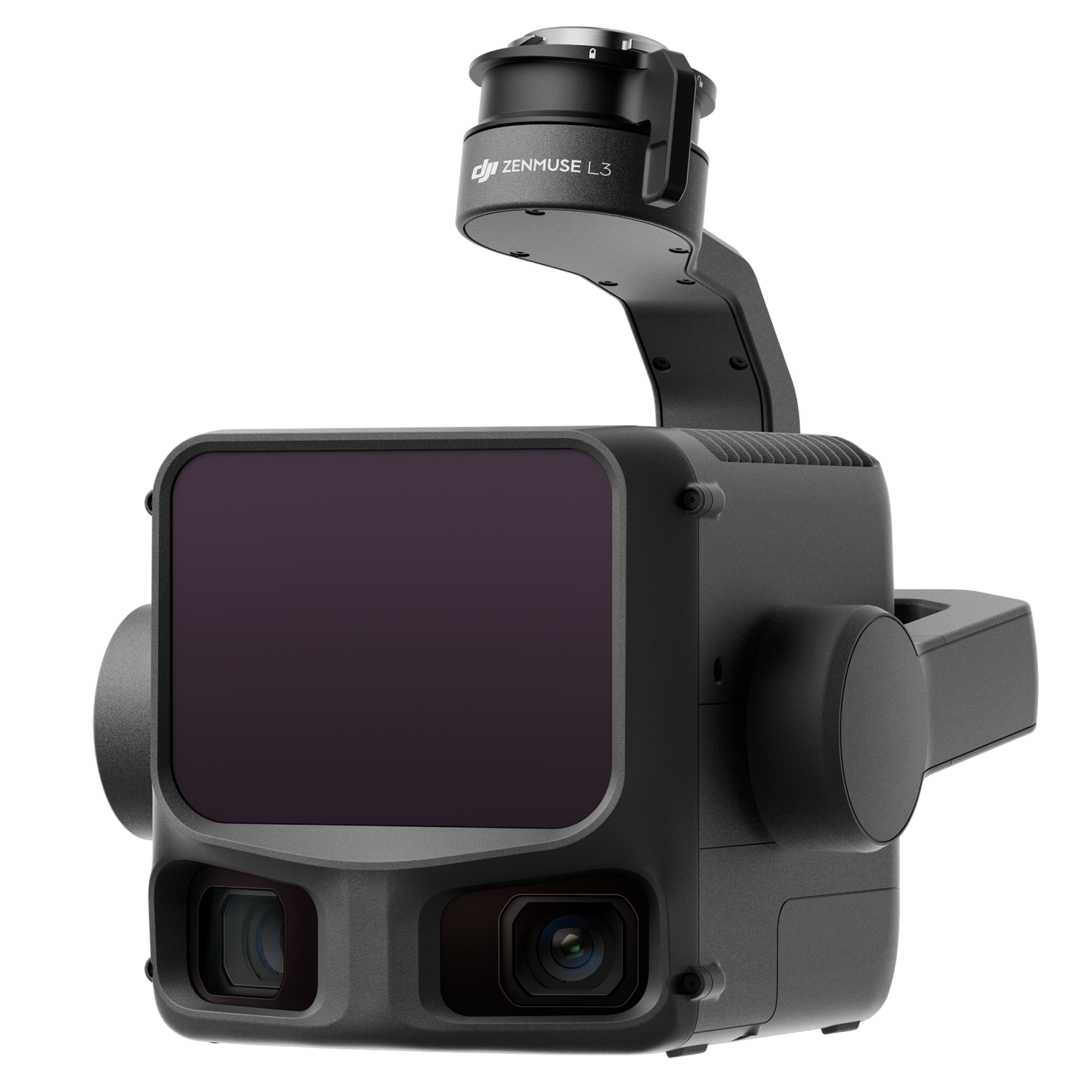

Zenmuse L3 combines 1535 nm long-range LiDAR, dual 100MP RGB cameras, high-precision POS, and 3-axis gimbal in a compact form—unmatched performance for its size.
Small Spot, High Energy
Small Spot, High Energy
0.25 mrad beam divergence gives ~1/5 the spot size of L2, detecting fine objects like power lines/branches. Higher energy density boosts vegetation penetration and ground point density for accurate complex terrain reconstruction.
High Pulse Rate, Multiple Returns
High Pulse Rate, Multiple Returns
Up to 2M pulses/sec and 16 returns enable precise spatial reconstruction. Adjustable point cloud density and penetration suit both high-accuracy mapping and challenging environments.
Scanning Modes
Scanning Modes
Supports Linear, Star-Shaped, and Non-Repetitive scanning modes. Linear suits straight-line mapping; Star-Shaped excels in circular or point-of-interest surveys; Non-Repetitive optimizes coverage in complex or restricted areas.
107° Ultra-Wide FOV
107° Ultra-Wide FOV
Dual RGB cameras offer 107° horizontal FOV for broader coverage per shot. With just 20% LiDAR side overlap, capture both DOM and DEM data in one flight—greatly boosting efficiency.
DJI Zenmuse L3

What's in the Box

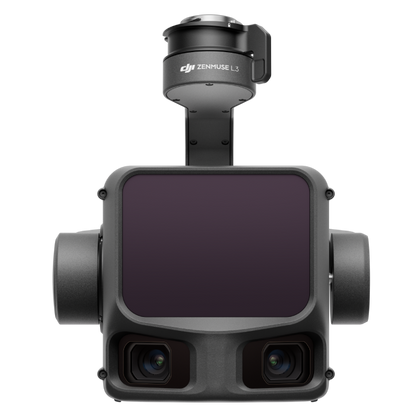

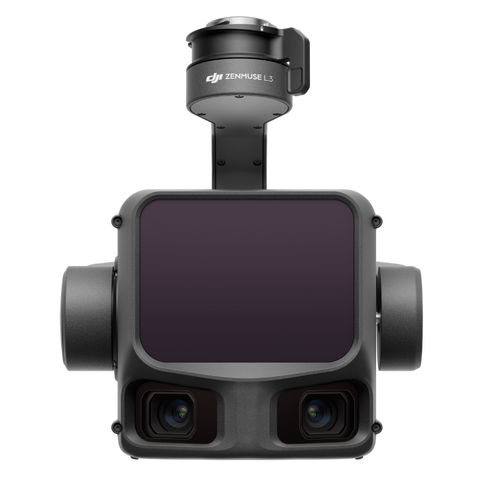

Zenmuse L3
1x
Zenmuse L3

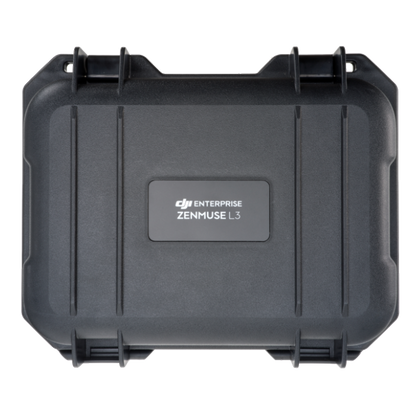

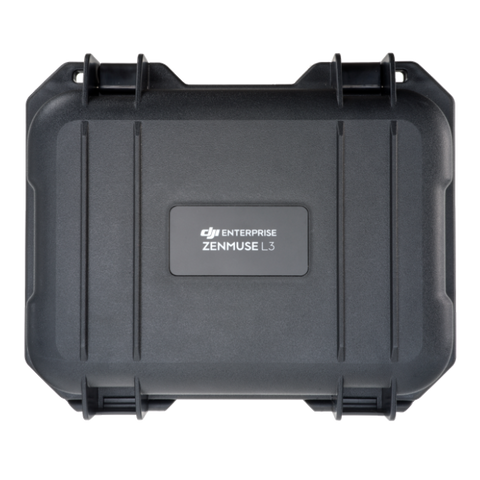

Zenmuse Hardcase
1x
Zenmuse Hardcase

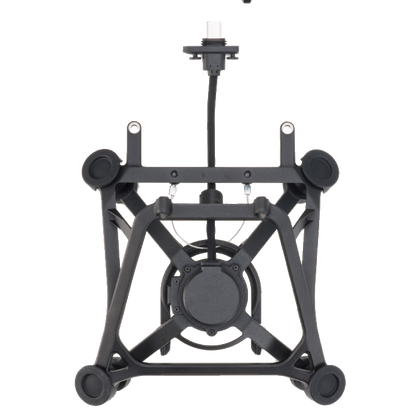

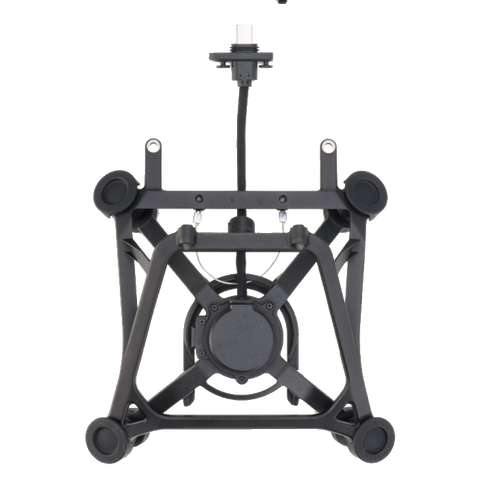

Matrice 400 Single Gimbal for Zenmuse L3
1x
Matrice 400 Single Gimbal for Zenmuse L3

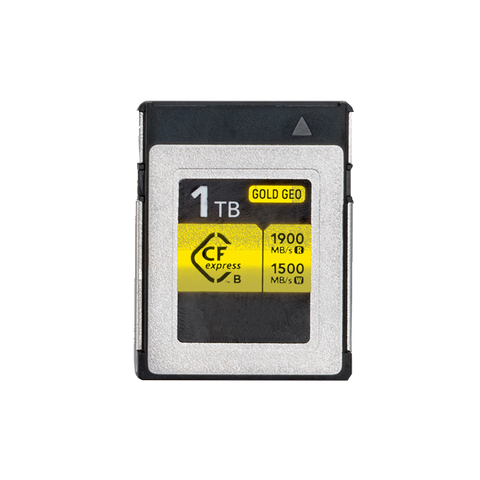

CFexpress Type B Card (1Tb)
2x
CFexpress Type B Card (1Tb)

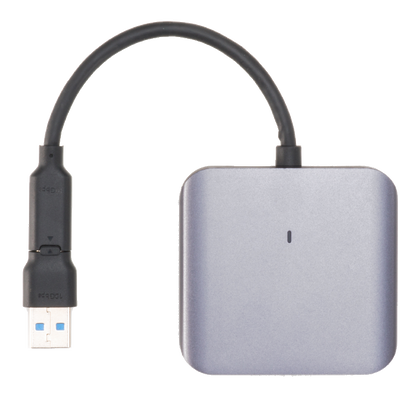

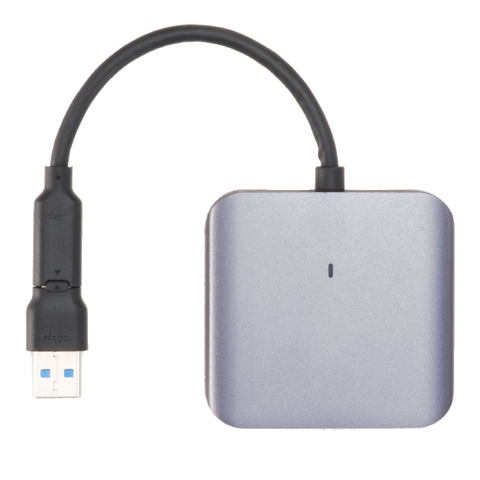

CFexpress Type B Card Reader
1x
CFexpress Type B Card Reader

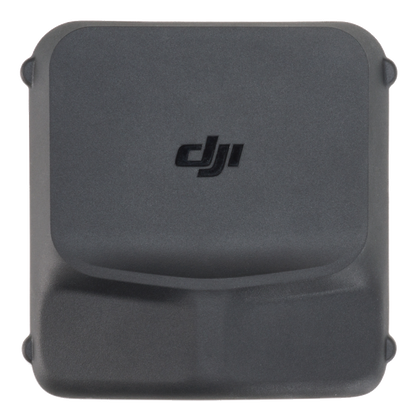

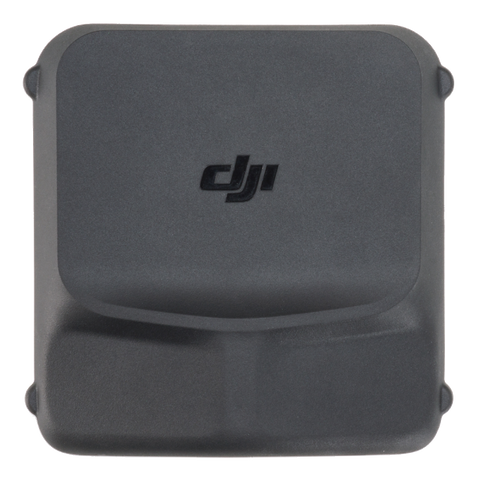

Zenmuse L3 Lens Cap
1x
Zenmuse L3 Lens Cap

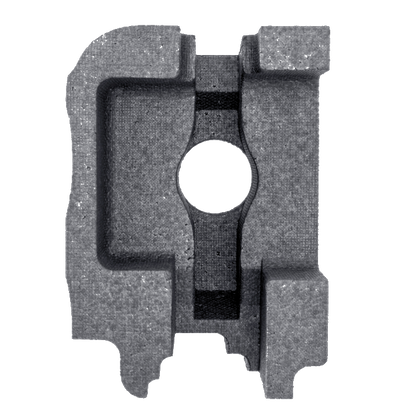

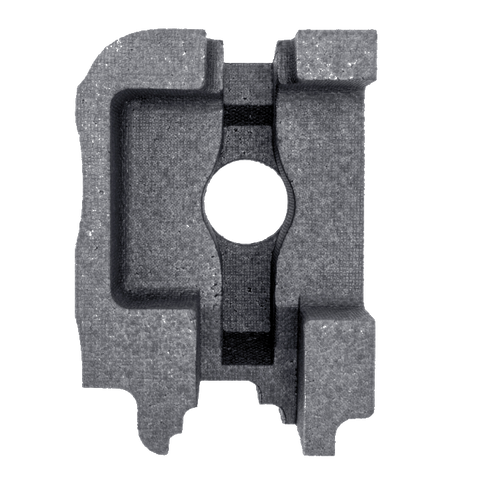

L3 Insert for M400 Case
1x
L3 Insert for M400 Case

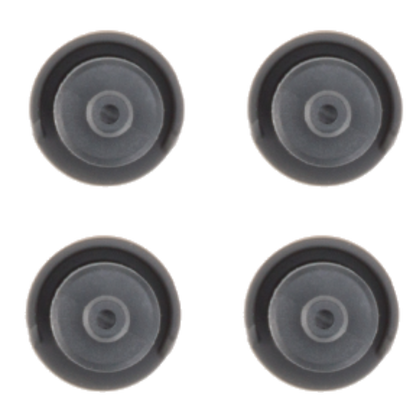

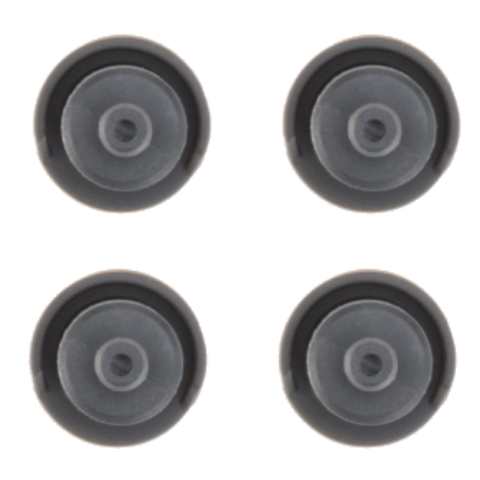

Zenmuse L3 Gimbal Dampener Pack
1x
Zenmuse L3 Gimbal Dampener Pack

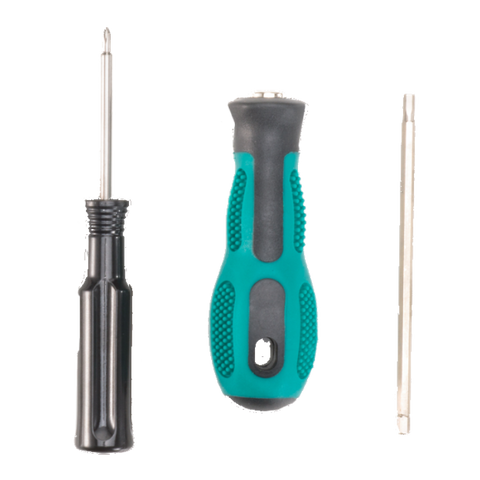

Tool Kit
1x
Tool Kit

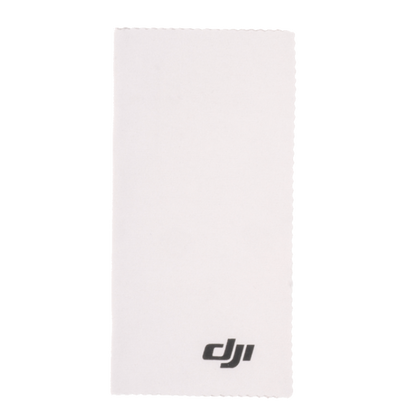

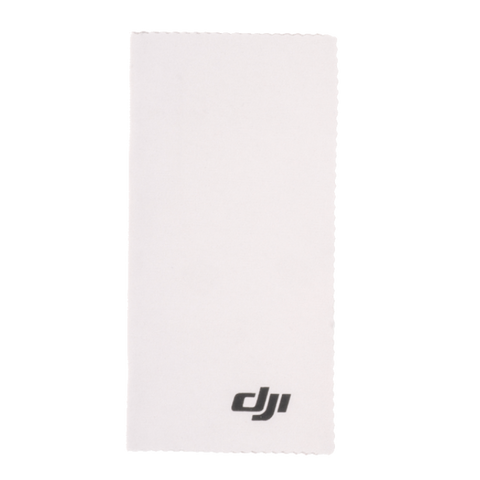

Lens Cloth
1x
Lens Cloth

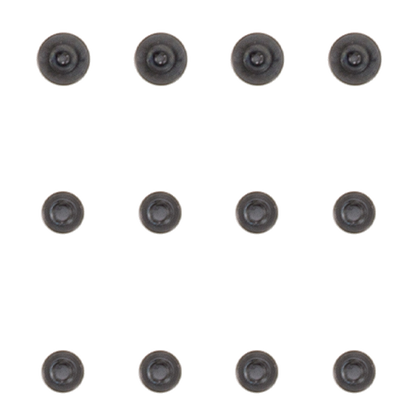

Screws
1x
Screws
Equipped with dual 100MP 4/3 CMOS RGB sensors and a mechanical shutter, Zenmuse L3 delivers significantly enhanced accuracy and efficiency. Pixel binning supports an effective 25MP resolution with larger pixel size, producing superior color reproduction even under poor lighting conditions.
DJI Pilot 2 automatically recommends flight parameters based on user-defined routes and generates a Density Profile Chart and point cloud distribution charts before takeoff, enabling users to preview point cloud results.
DJI Terra features robust built-in PPK (Post-Processed Kinematic) capabilities, compatible with D-RTK 3 and standard base station data. The platform supports local PPK for RGB imagery and LiDAR, providing centimeter-level positioning accuracy even in areas with limited network connectivity or where RTK is unavailable.
Zenmuse L3 seamlessly integrates with DJI's ecosystem to deliver an end-to-end mapping solution. From data acquisition and processing to application, this unified workflow is simpler to operate and easier to master than traditional multi-platform setups, helping users efficiently complete a wide range of mapping tasks.
