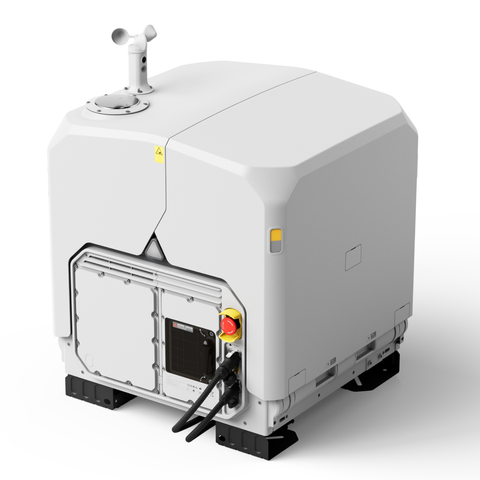

DJI Dock 4

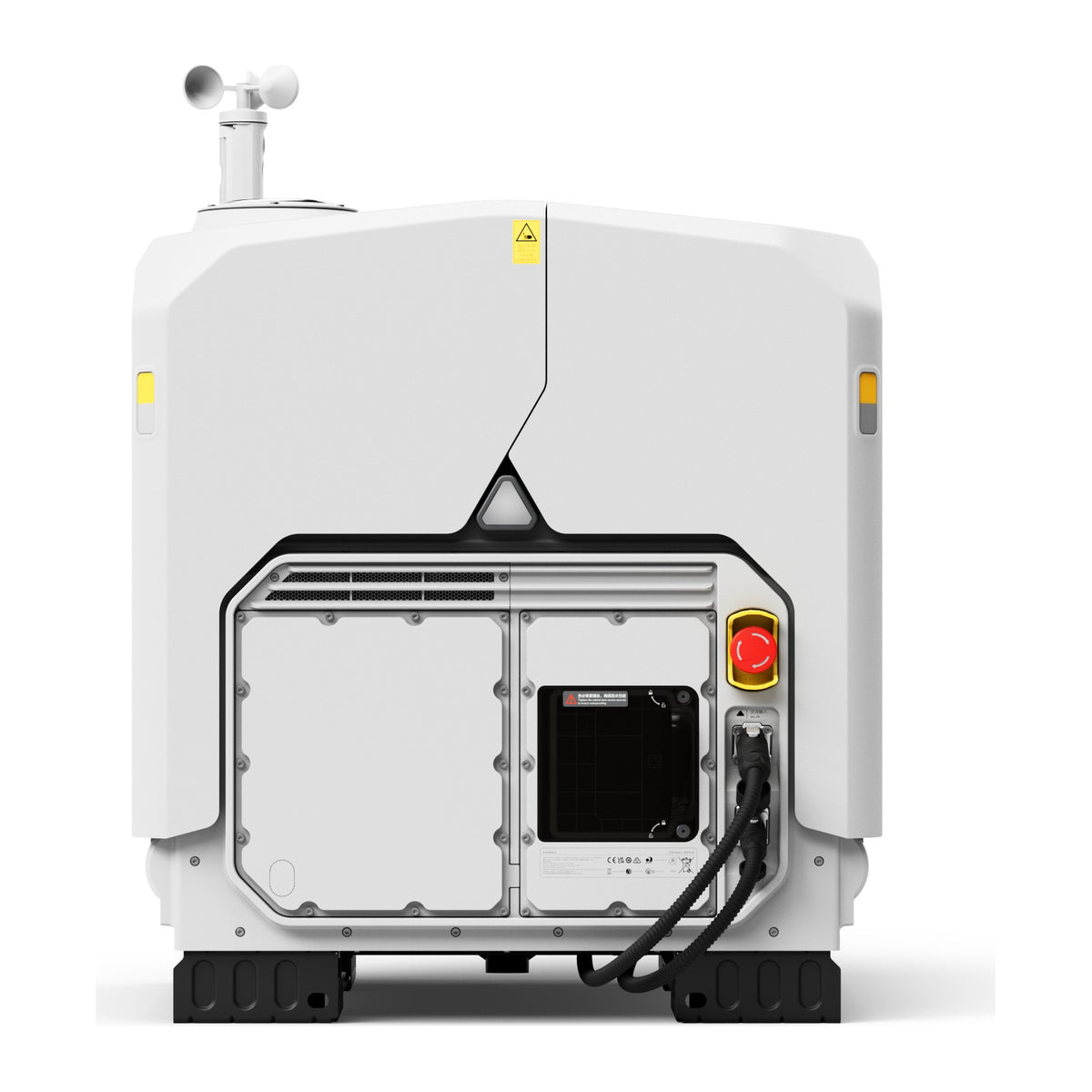

DJI Dock 4, front view

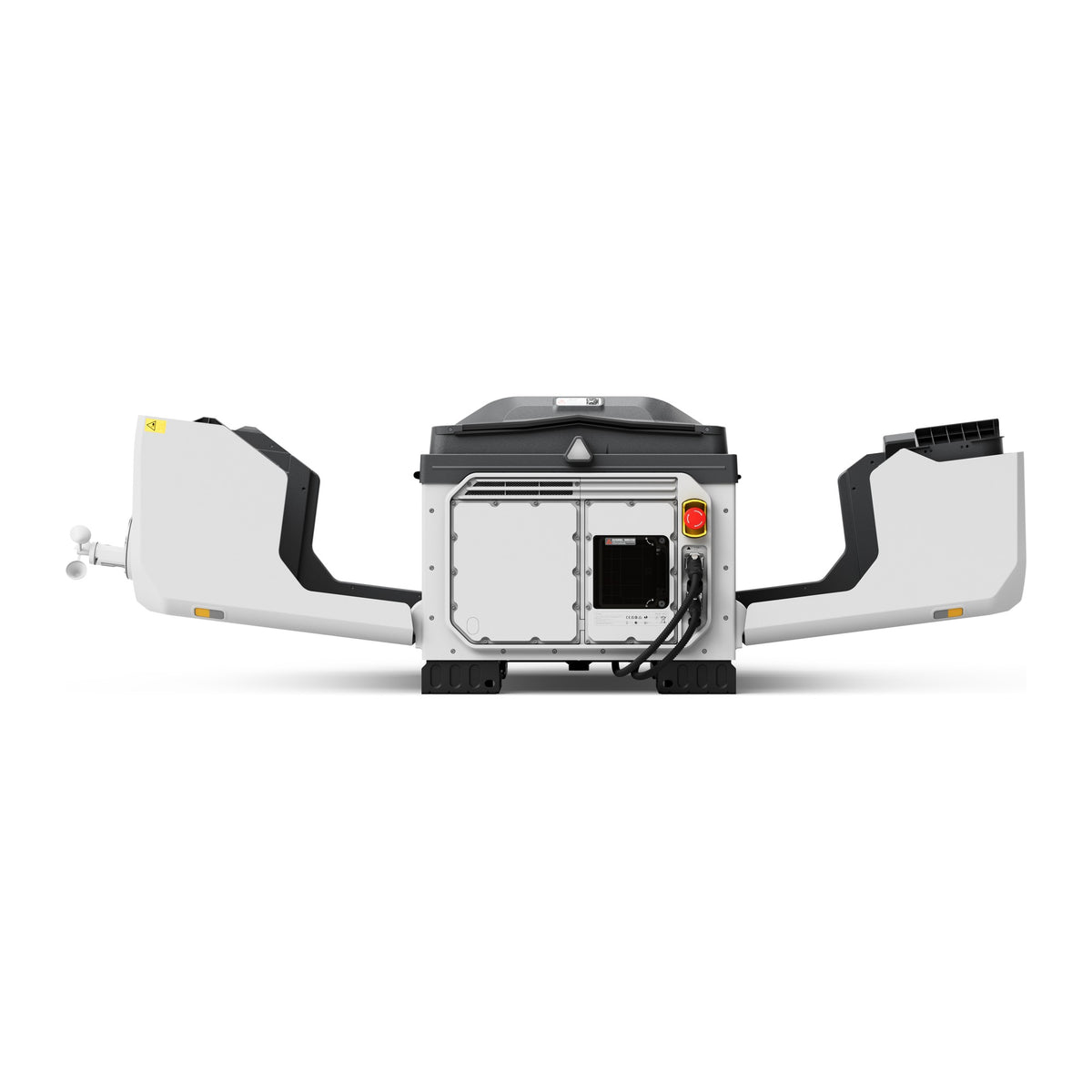

DJI Dock 4, front view with the covers open

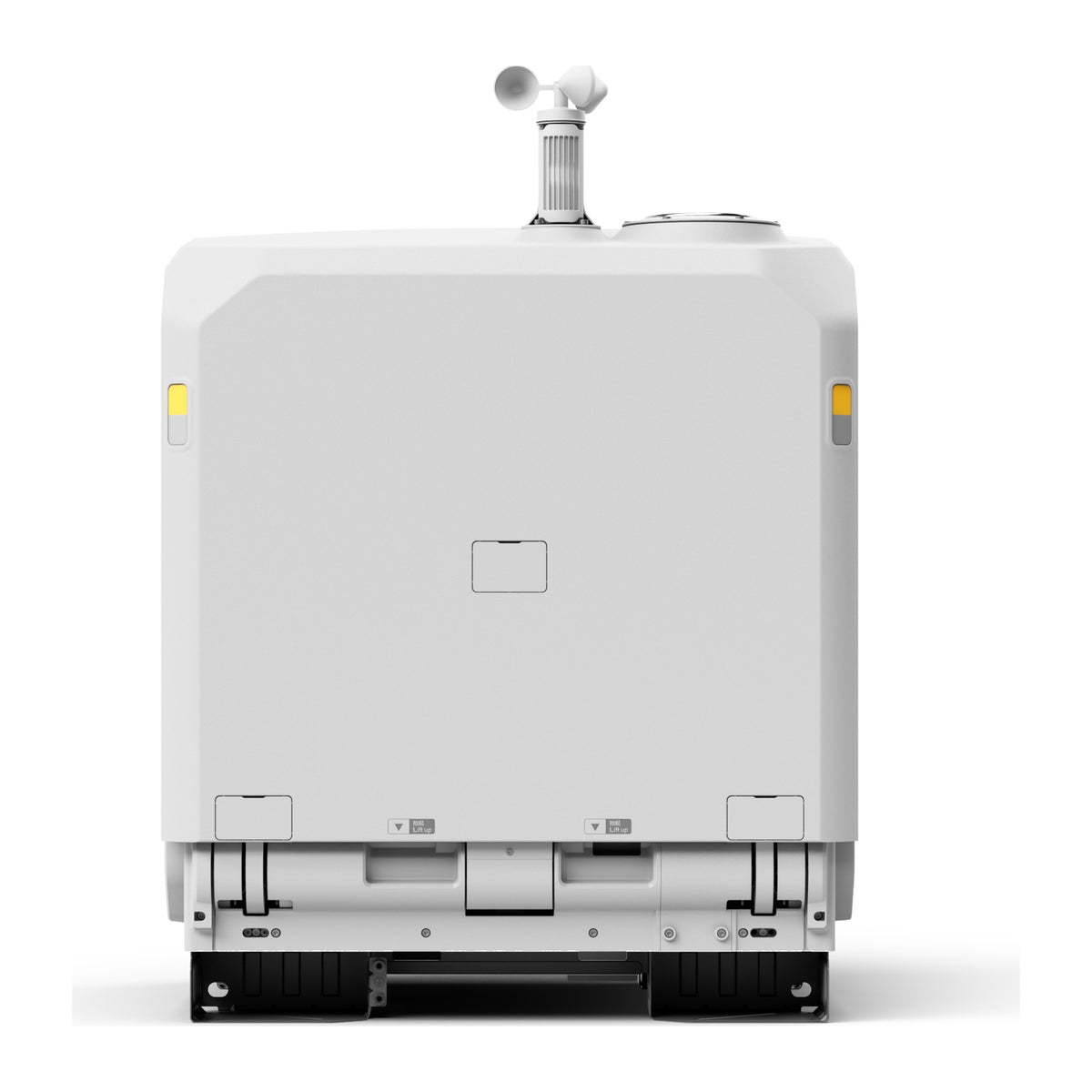

DJI Dock 4, left side view

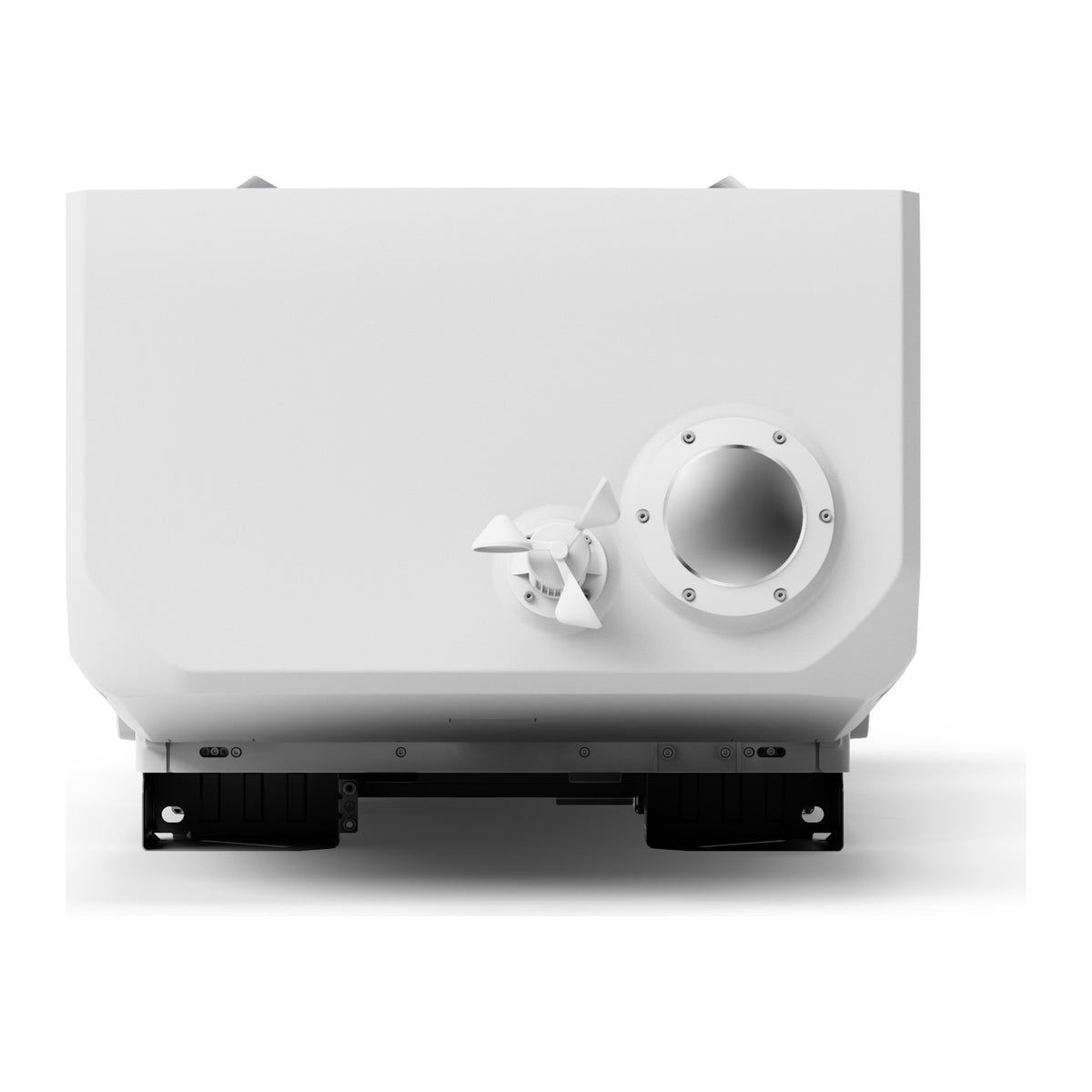

DJI Dock 4, left side view with the cover open

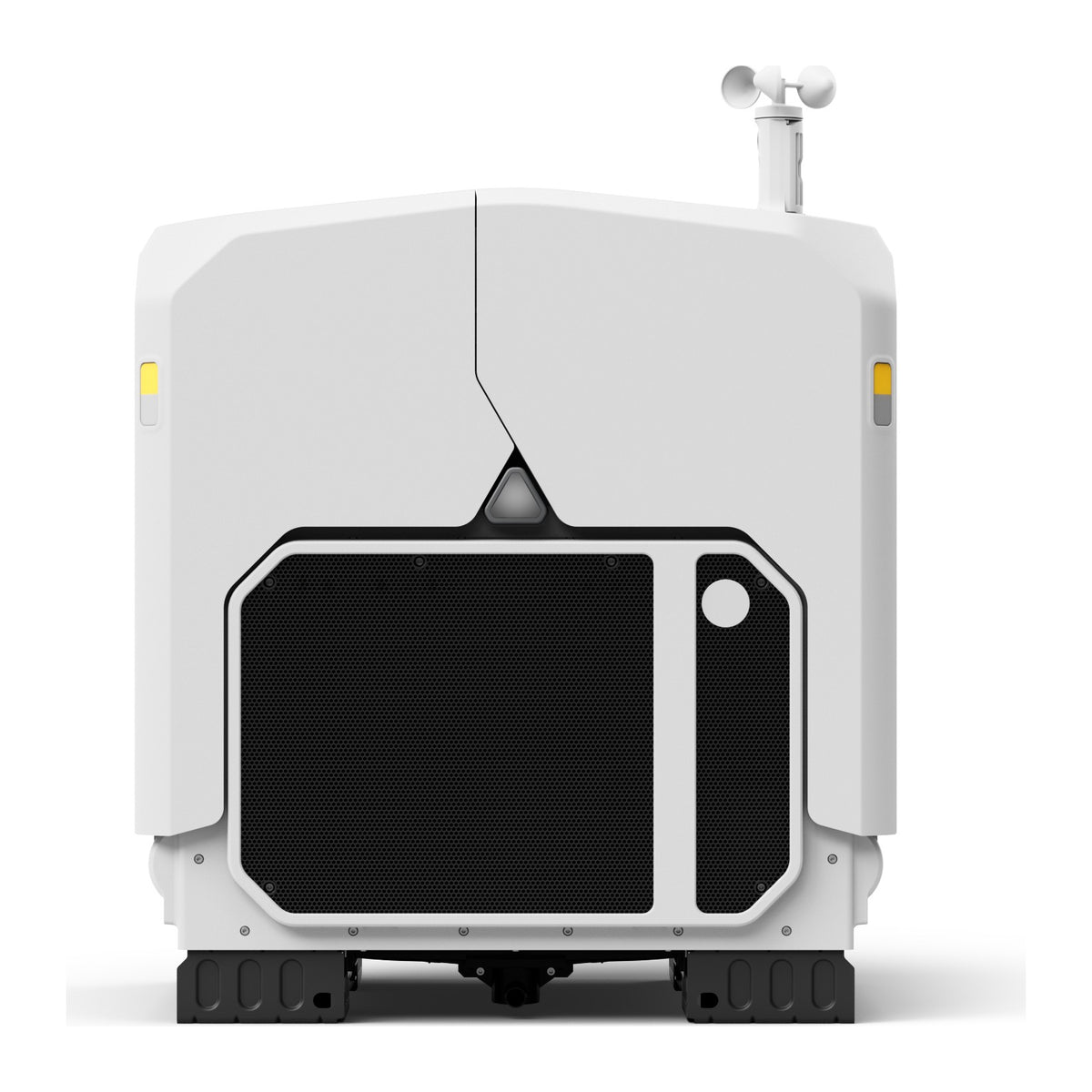

DJI Dock 4, rear view

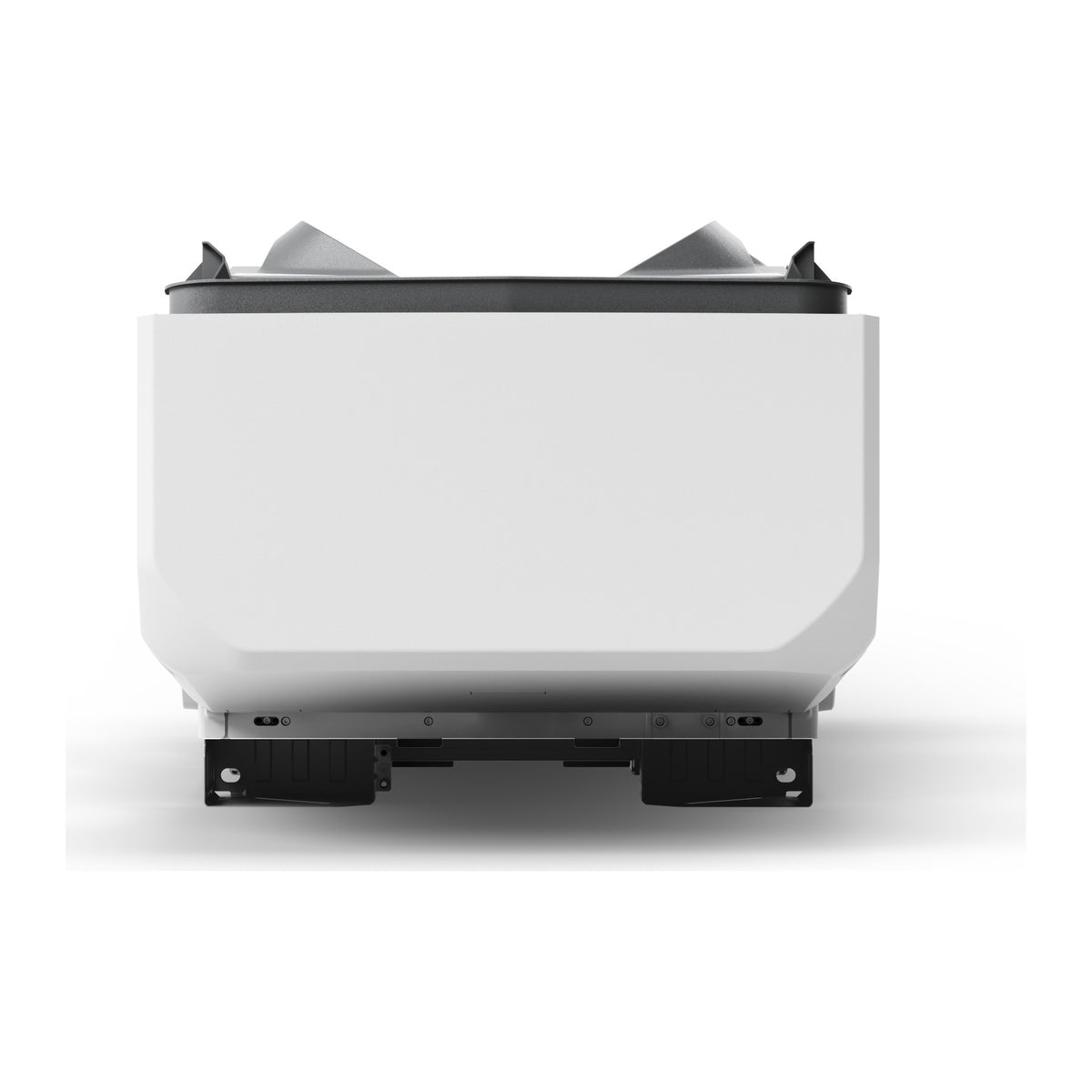

DJI Dock 4, right side view with the cover open

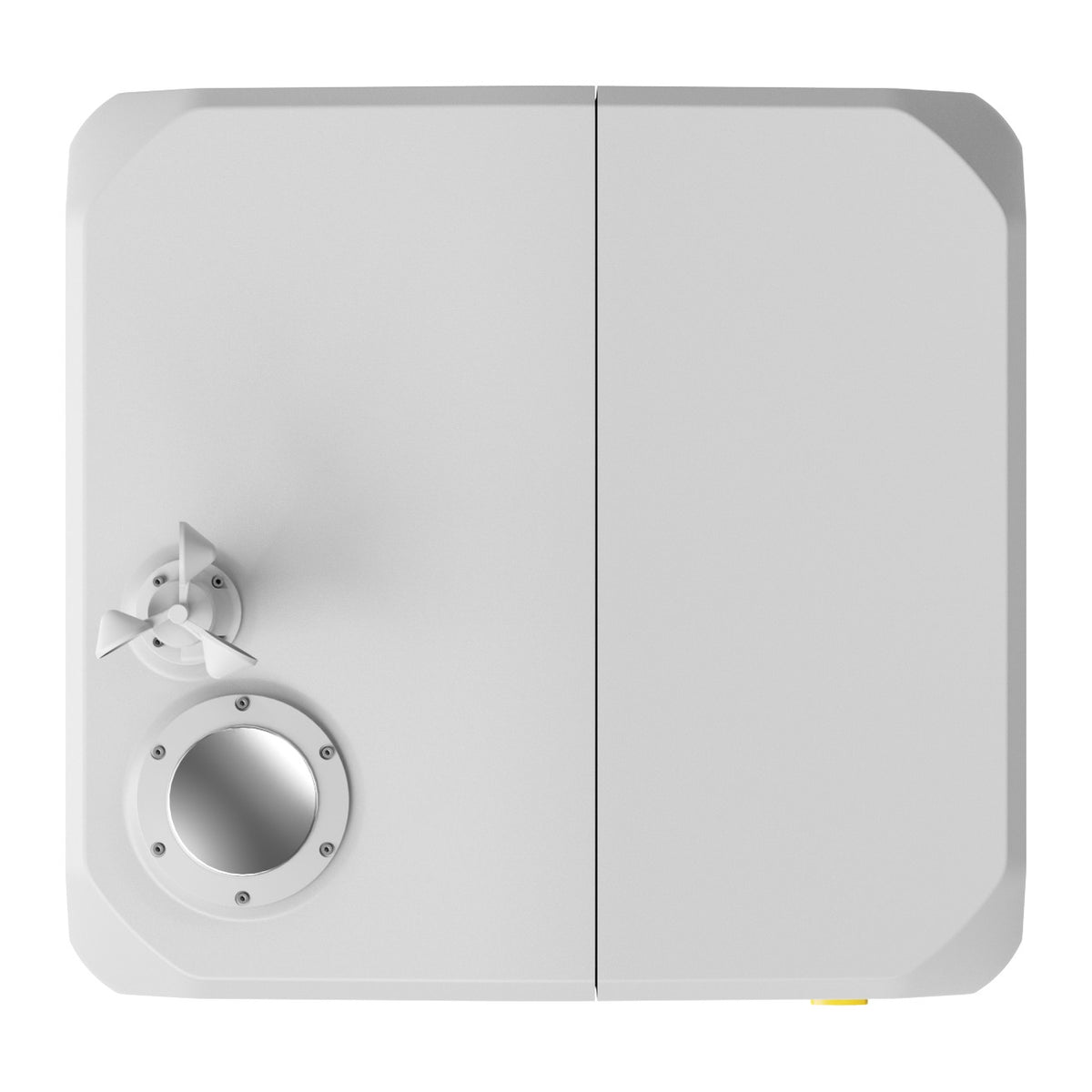

DJI Dock 4, top view

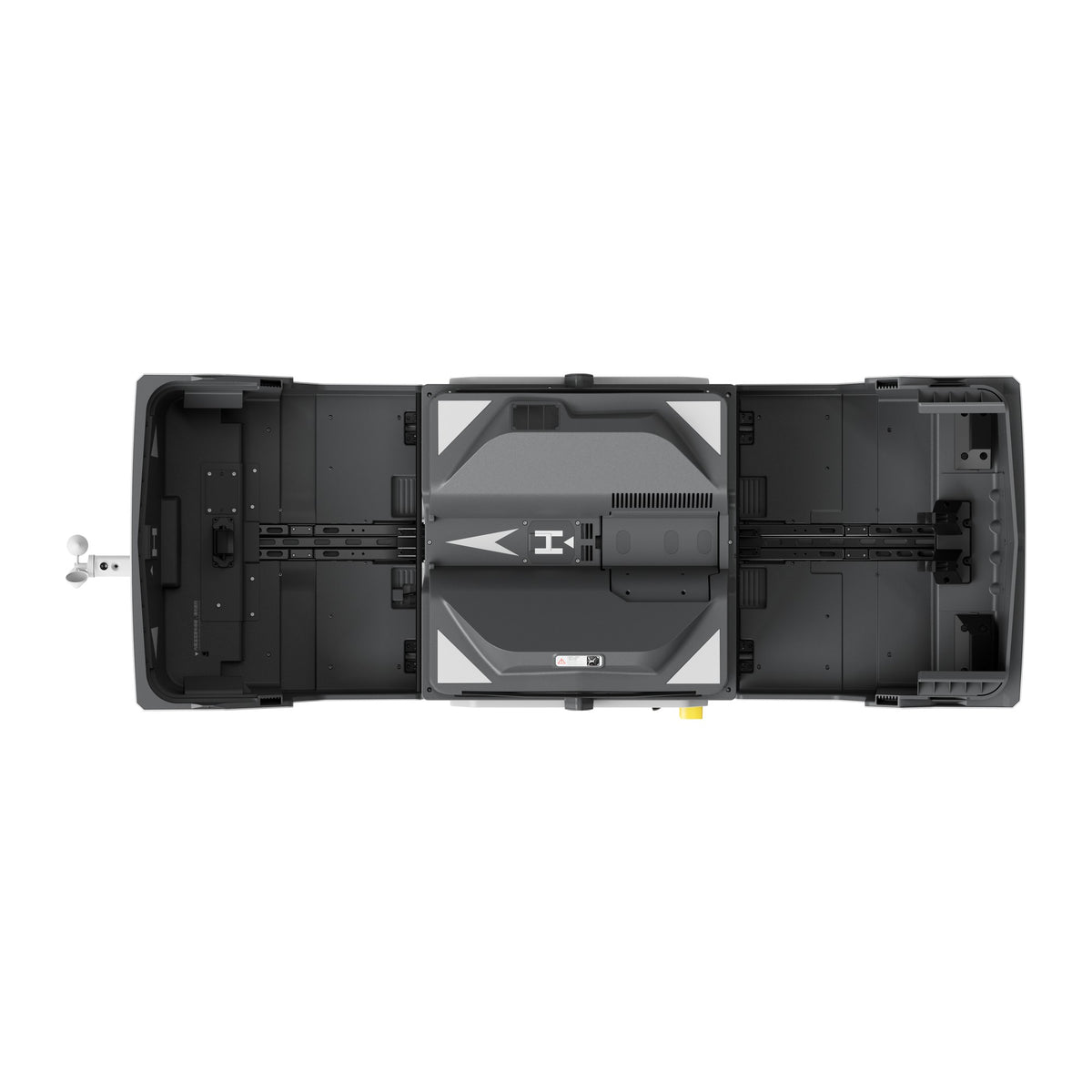

DJI Dock 4, top view with the covers open

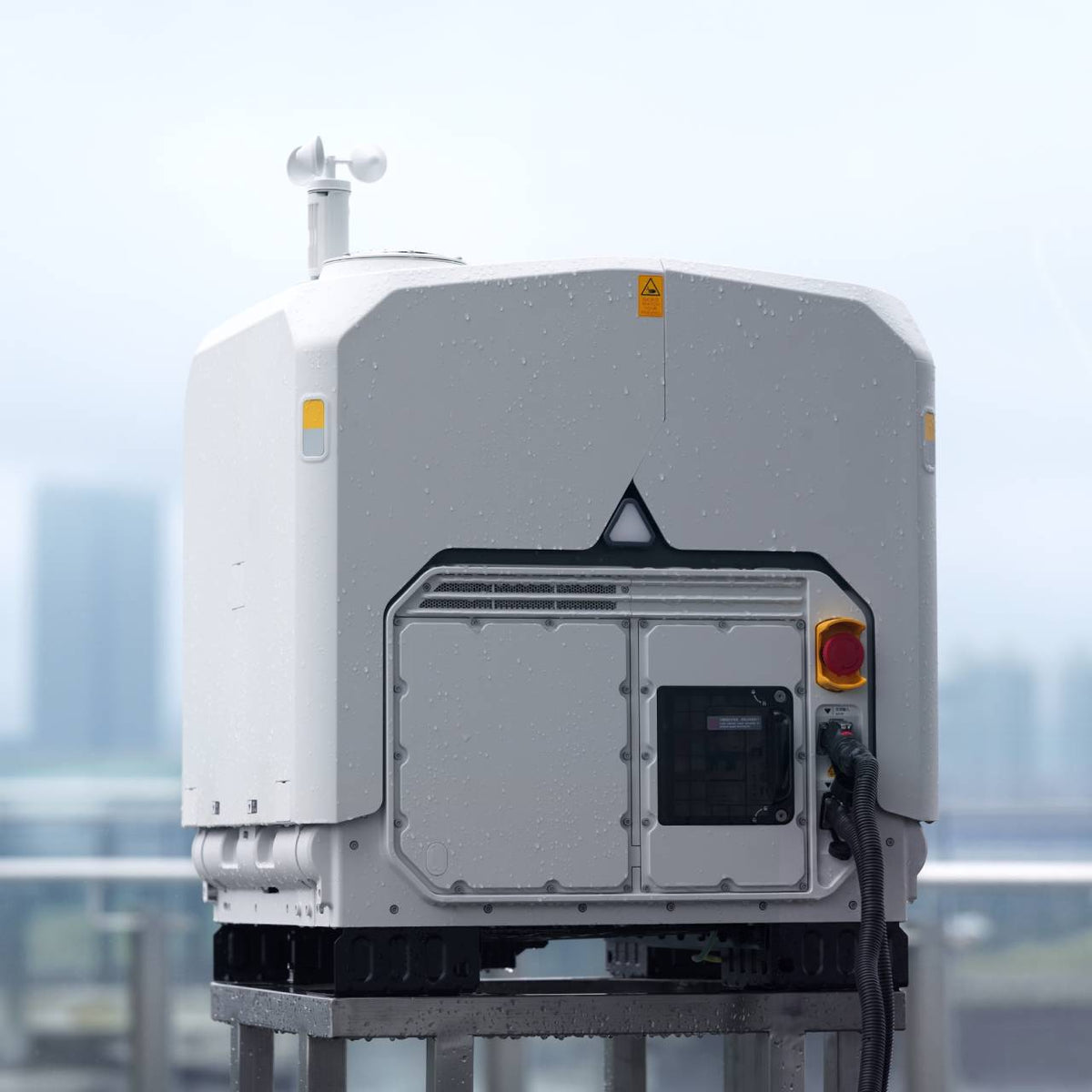

DJI Dock 4 in rain

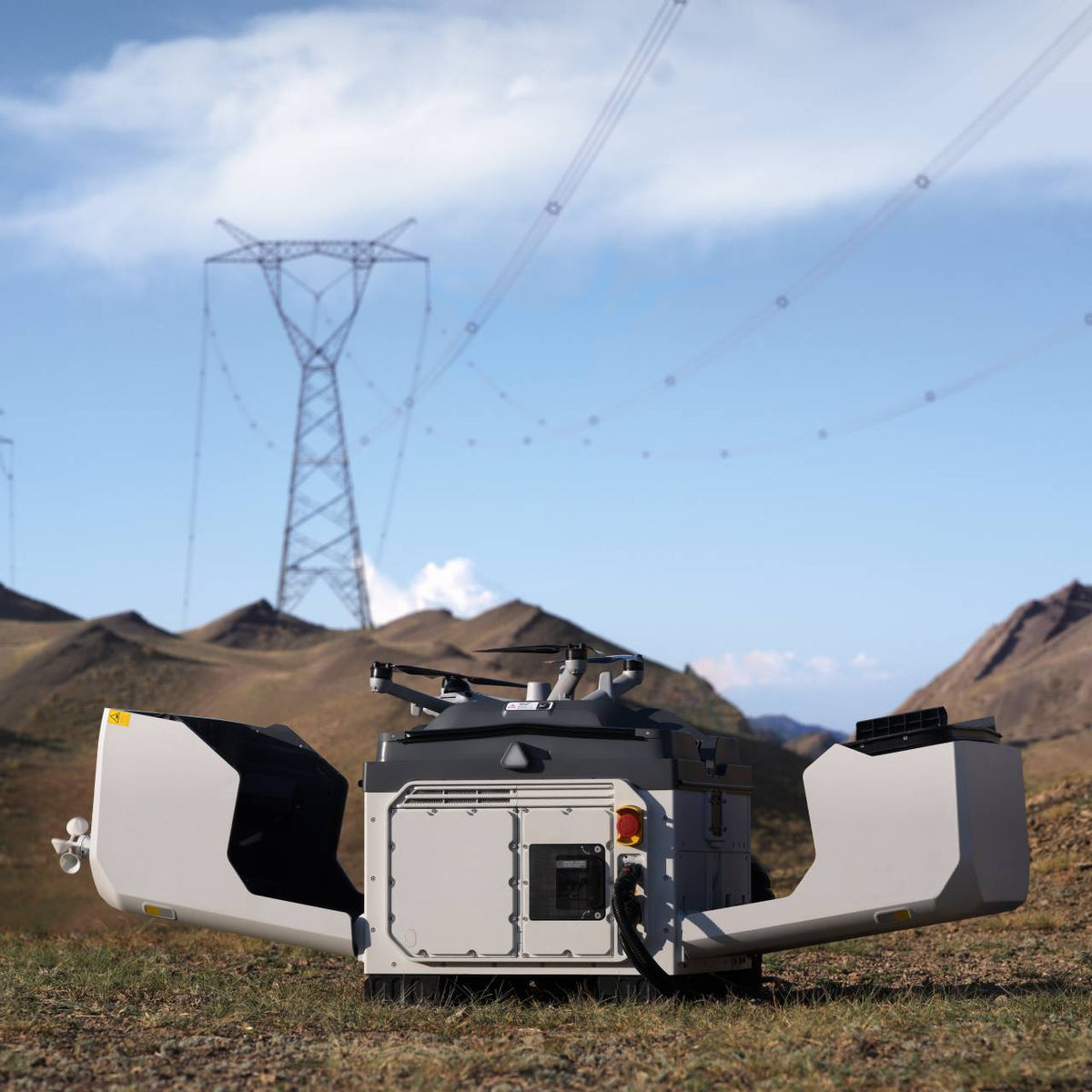

AI-generated concept of DJI Dock 4 deployed near power infrastructure

DJI

DJI Dock 4

A fresh battery in 25 seconds, back in the air in under 45.
$19,360
Lead time on quote
  • 25-second battery swap
  • Up to 80 MB/s offload
  • IP56 dock
Build a package
  • Setup & training
    included
  • 12-month
    Australian warranty
  • Express shipping
    Australia-wide

Book a time

Pick a time that suits you.

Build a Dock 4 package

Dock 4 and the Matrice 5TD Combo with a year of FlightHub 2. Add the AP1 Parachute and DJI Care as the site needs them.

  1. 01Dock

    DJI Dock 4

    DJI Dock 4

    Battery-swap dock for Matrice 5TD.

    $19,360

  2. 02Aircraft

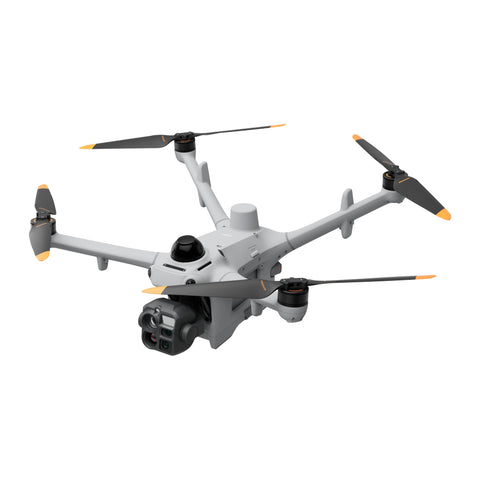

    DJI Matrice 5TD Combo

    DJI Matrice 5TD Combo

    Wide, medium tele, tele and thermal cameras on one aircraft.

    Included O4 Ground Station. Mounted up high, it carries video and control past hills and buildings.

    $15,040

    Add the AP1 Parachute?Takes the top mount on Matrice 5TD.
    About the AP1 Parachute

  3. 03Software

    DJI FlightHub 2

    Routes, schedules and live feeds from the office.

    1 year included

  4. 04DJI Care

How Dock 4 works

From the 25-second swap to the desk in the office.

Ready in seconds

Dock 4 lifts out the battery that just landed and loads a charged one, so the aircraft doesn't sit through a recharge. Media keeps transferring during the swap, and the aircraft is back in the air in under 45 seconds.

Battery swap
Under 25 s, from the cover closing
Landing to take-off
Under 45 s
Battery bays
4, holding up to 3 batteries
Charging
2 at once, 15 to 95% in 27 min

The control room watches the feed with about 160 ms of latency. Video travels over the O4 Ground Station link and two 4G connections, so one weak signal doesn't drop the picture.

Livestream latency
About 160 ms
Links
O4 Ground Station plus dual 4G
Media offload
Up to 80 MB/s over Wi-Fi after landing

Built for the site

Dock 4 and Matrice 5TD both work from -40 °C to 50 °C. The dock is sealed to IP56 and brings the aircraft home in winds up to 12 m/s.

Operating temperature
-40 to 50 °C
Sealing
Dock IP56, aircraft IP55
Max landing wind
12 m/s
Rain
Up to 2 mm/h

Dock 4 weighs 66 kg and uses the same 400 × 400 mm mounting holes as Dock 3. In Silent mode it runs under 60 dB.

Weight
66 kg, without batteries or aircraft
Mounting holes
400 × 400 mm, same as Dock 3
Power
100 to 240 V AC, max 2,000 W
Noise
Under 60 dB Silent, 65 dB Normal

Every Dock 4 installs with a DJI O4 Ground Station, which carries the video, RTK and network link. With more than one station on a site, the aircraft roams between them in flight and covers more ground than one station reaches.

O4 Ground Station
Video, RTK base and network
Dock to O4 cable
1.5 to 80 m
O4 rating
IP67, -40 to 55 °C

Run it from the office

Plan routes, set schedules and watch every flight from the office in DJI FlightHub 2. Run it in the cloud, on your own servers or on DJI's all-in-one appliance. A year of FlightHub 2 comes with the Dock 4 package.

Hosting
Cloud, On-Premises or all-in-one appliance
Onboard AI
Detects 17 object types
Encryption
TLS 1.2+ and AES-256
Battery handlingBattery swap and wireless charging
Battery swap time< 25 s (cover closed to swap complete)
Turnaround< 45 s (landing to take-off)
Battery compartment4 bays, up to 3 batteries
Charging2 batteries at once, 15–95% in 27 min at 25 °C
Backup powerCompartment batteries, approx. 4.5 h each, up to 3 in sequence
IP RatingIP56
Operating temperature-40 °C to +50 °C
Wind resistance12 m/s (max landing wind)
Max rainfall2 mm/h
Max operating altitude5,000 m
Weight66 kg (without batteries or aircraft)
DimensionsCover open 1750 × 640 × 550 mm · Cover closed 639 × 640 × 836 mm
Mounting holes400 × 400 mm (same as Dock 3)
Input power100–240 V AC, 50/60 Hz, max 2,000 W
Video transmissionDJI O4 Enterprise Enhanced, via the O4 Ground Station
RTKVia the O4 Ground Station
Wi-FiUp to 80 MB/s media offload after landing
NetworkEthernet via the O4 Ground Station; 4G with DJI Cellular Dongle 2
Operating noise< 60 dB (Silent mode) · 65 dB (Normal mode)

Choosing a model

Which aircraft flies from Dock 4?
Matrice 5TD. It carries wide, medium tele, tele and thermal cameras on one aircraft.
What does Dock 4 do that Dock 3 doesn't?
It swaps the battery instead of charging the aircraft in place, so the next flight can launch in under 45 seconds. It also runs down to -40 °C against -30 °C for Dock 3, uses its spare batteries as backup power and takes RTK and transmission from an O4 Ground Station.

On the job

How fast is the battery swap?
25 seconds from the cover closing to a fresh battery in place, and under 45 seconds from touchdown to the next take-off. Up to 2 GB of footage offloads over Wi-Fi during the swap, at up to 80 MB/s.
How many batteries does it hold?
Three charged batteries in a four-bay compartment, with one bay kept free for the battery coming off the aircraft. Standby batteries are held at 95%, and two charge at once, 15 to 95% in 27 minutes at 25 °C.
What happens if mains power drops?
The compartment batteries become the backup supply, about 4.5 hours each, used one after another. With two or more batteries in the compartment, Dock 4 can still swap and launch. Aircraft charging and air conditioning wait until mains power returns.
What weather can it handle?
The dock is rated IP56 and the aircraft IP55, both from -40 °C to 50 °C. It operates in wind up to 12 m/s and rain up to 2 mm/h, at sites up to 5,000 m. The propellers use an anti-icing material.

Buying and delivery

Can we reuse our Dock 3 site?
The concrete base and mounting holes, yes: both docks use a 400 × 400 mm hole pattern. The power cable and RTK don't carry over. Dock 4 uses an LP25 cable, draws up to 2,000 W against 800 W for Dock 3, and takes RTK from the O4 Ground Station.
Does Dock 4 need an O4 Ground Station?
Yes. It carries the dock's video transmission, RTK base station and network link. Dock 4 powers it over PoE through one Ethernet cable, 1.5 to 80 m long, and it mounts high in an open spot with a clear line of sight to the dock.
What does setup involve?
The O4 Ground Station position is surveyed first with a Matrice 4 Series or Matrice 4D aircraft. We then set up the dock and station, calibrate RTK, bind the aircraft, load the batteries and fly the entry and exit route that guides every take-off and return. Training is included.

Data and software

Does it connect to our existing systems?
Yes, through FlightHub 2, run as public cloud, on your own servers or as an all-in-one appliance. OpenAPI and FlightHub Sync link third-party platforms, and DFR workflows push flight requests, live video and evidence into VMS, CAD and SCADA.
What network does the site need?
Ethernet at the O4 Ground Station, ideally gigabit, with more than 20 Mbps up and down (40 Mbps recommended) and latency of 100 ms or less. A DJI Cellular Dongle 2 on the station covers sites without Ethernet, and the aircraft's two 4G links merge with the O4 link.
Can we use Sub-2 GHz in Australia?
Yes. Australia is a supported region. Turn it on in Device Management and accept the liability acknowledgement.
