The 252 mm tele camera reads signs from 400 m and picks out bolt- and pin-level defects at 100 m. Hybrid zoom reaches 176×.
- Wide
- 1/0.98-inch, 50 MP, 23.5 mm
- Medium tele
- 1/1.28-inch, 50 MP, 70 mm
- Tele
- 1/1.5-inch, 50 MP, 252 mm
- Hybrid zoom
- Up to 176×
DJI

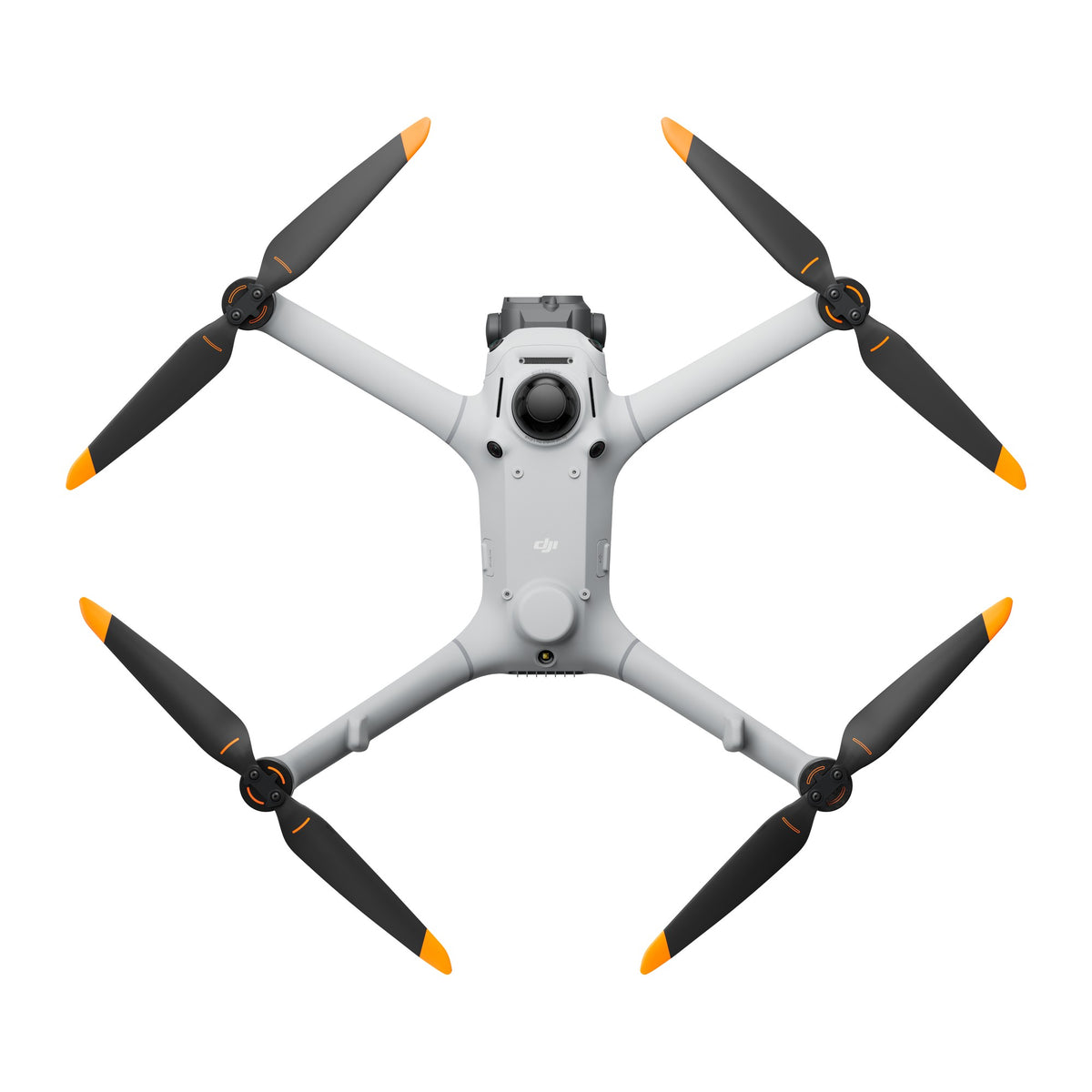

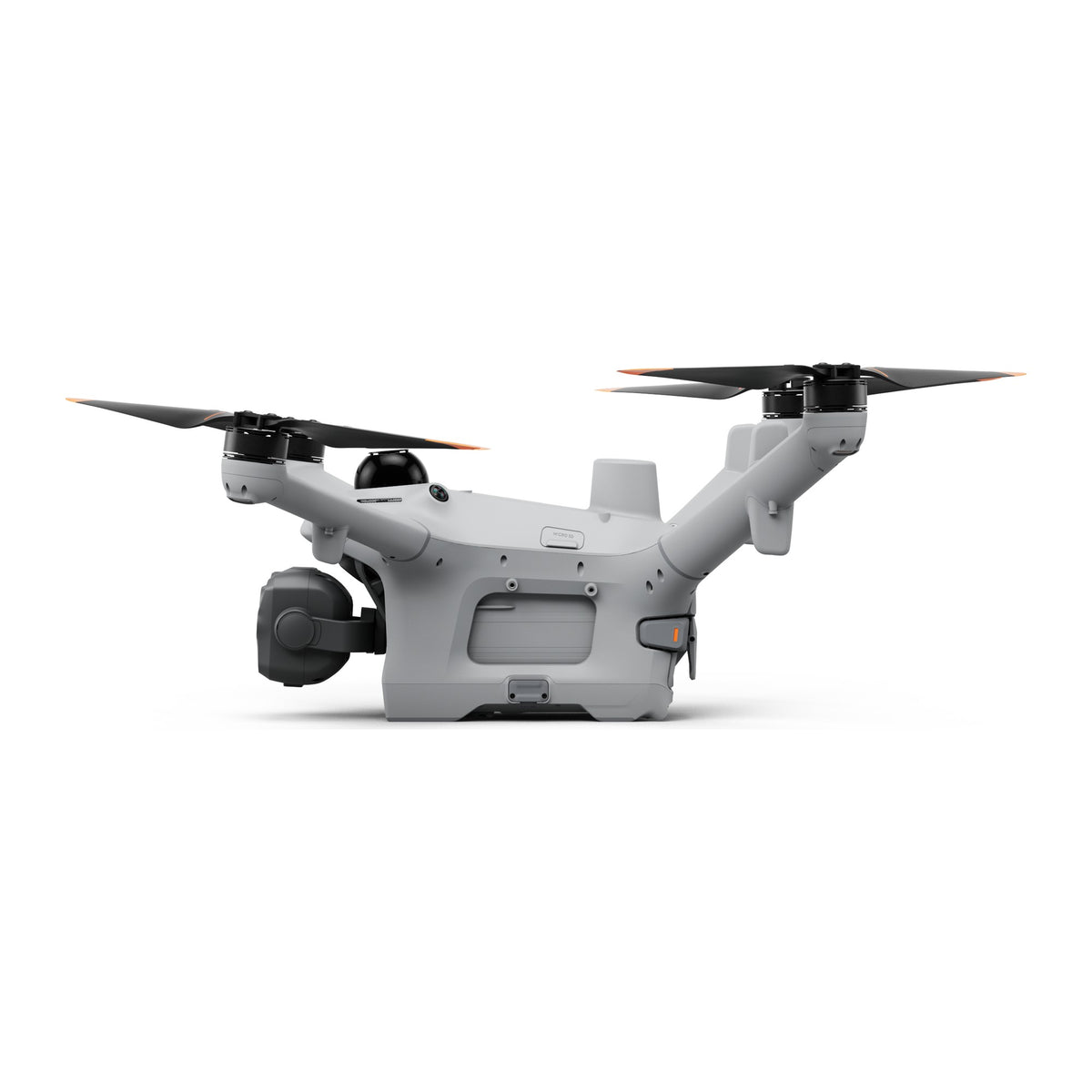

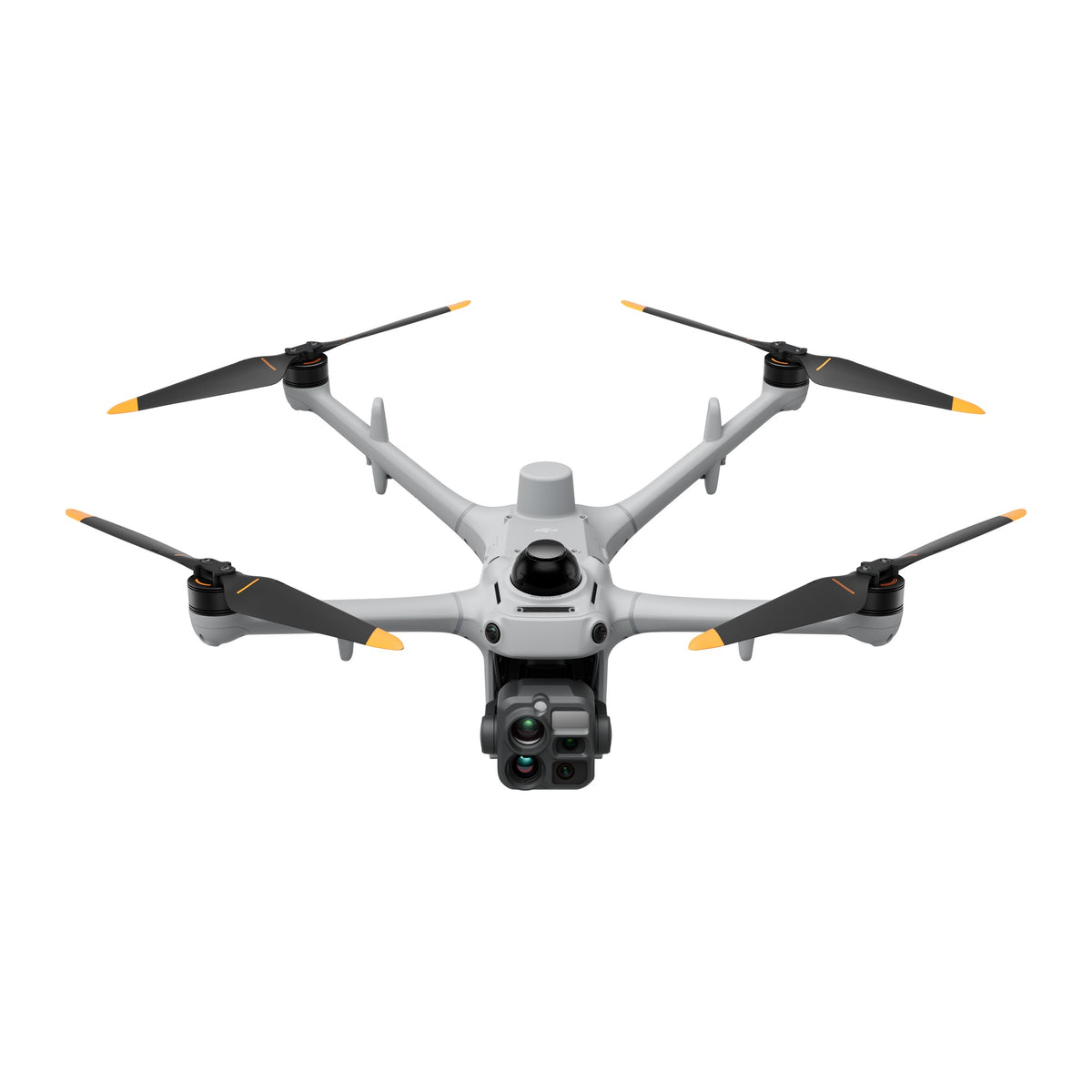

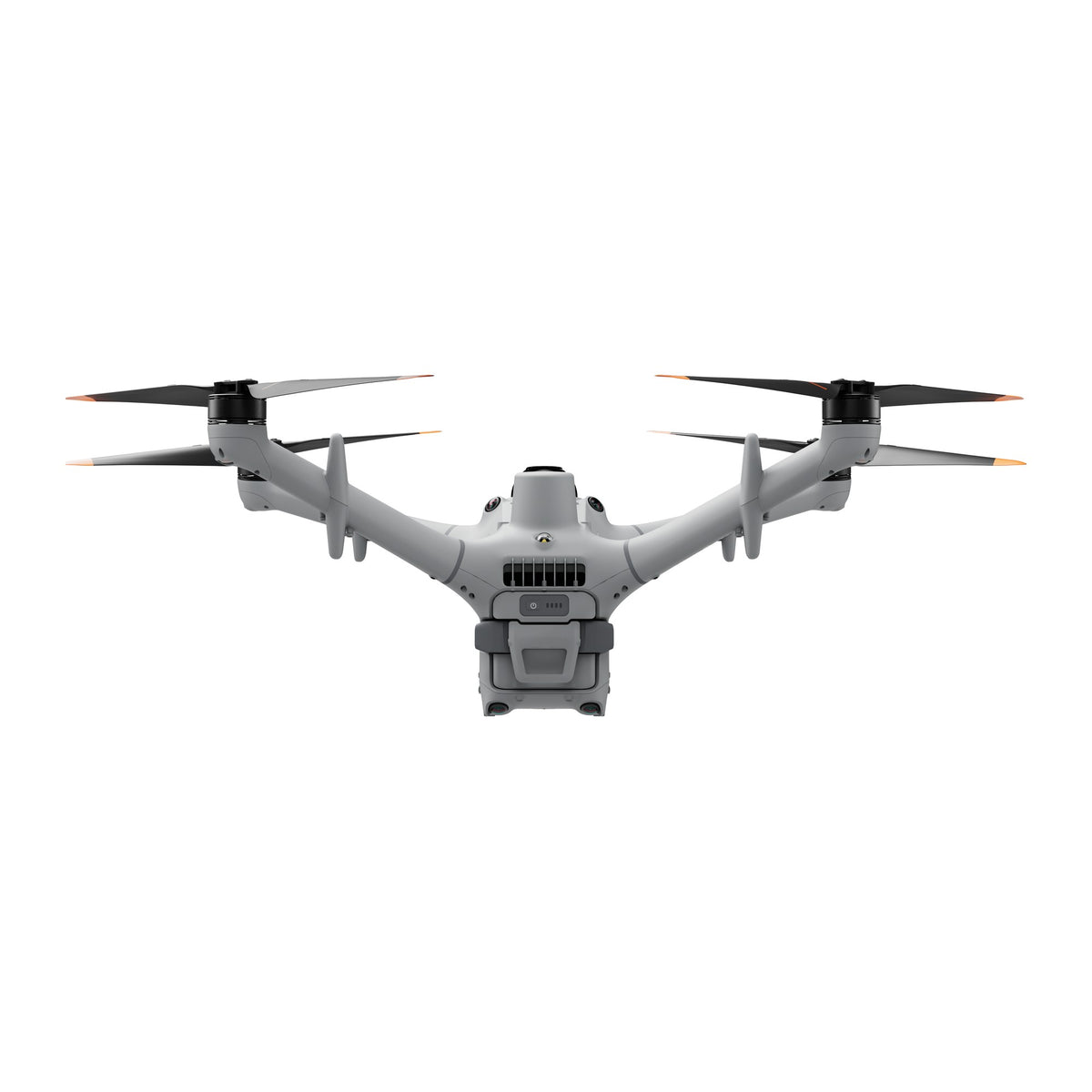

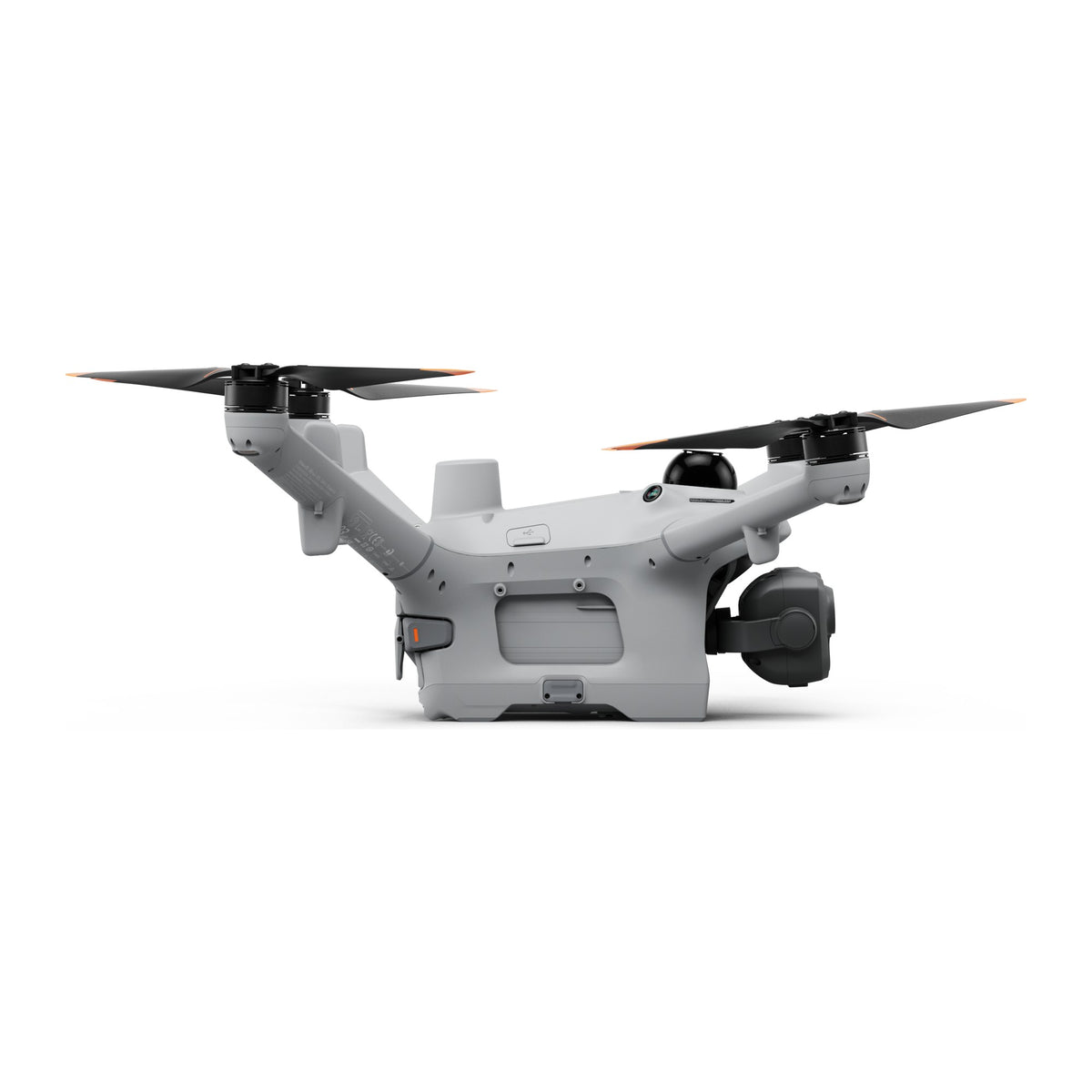

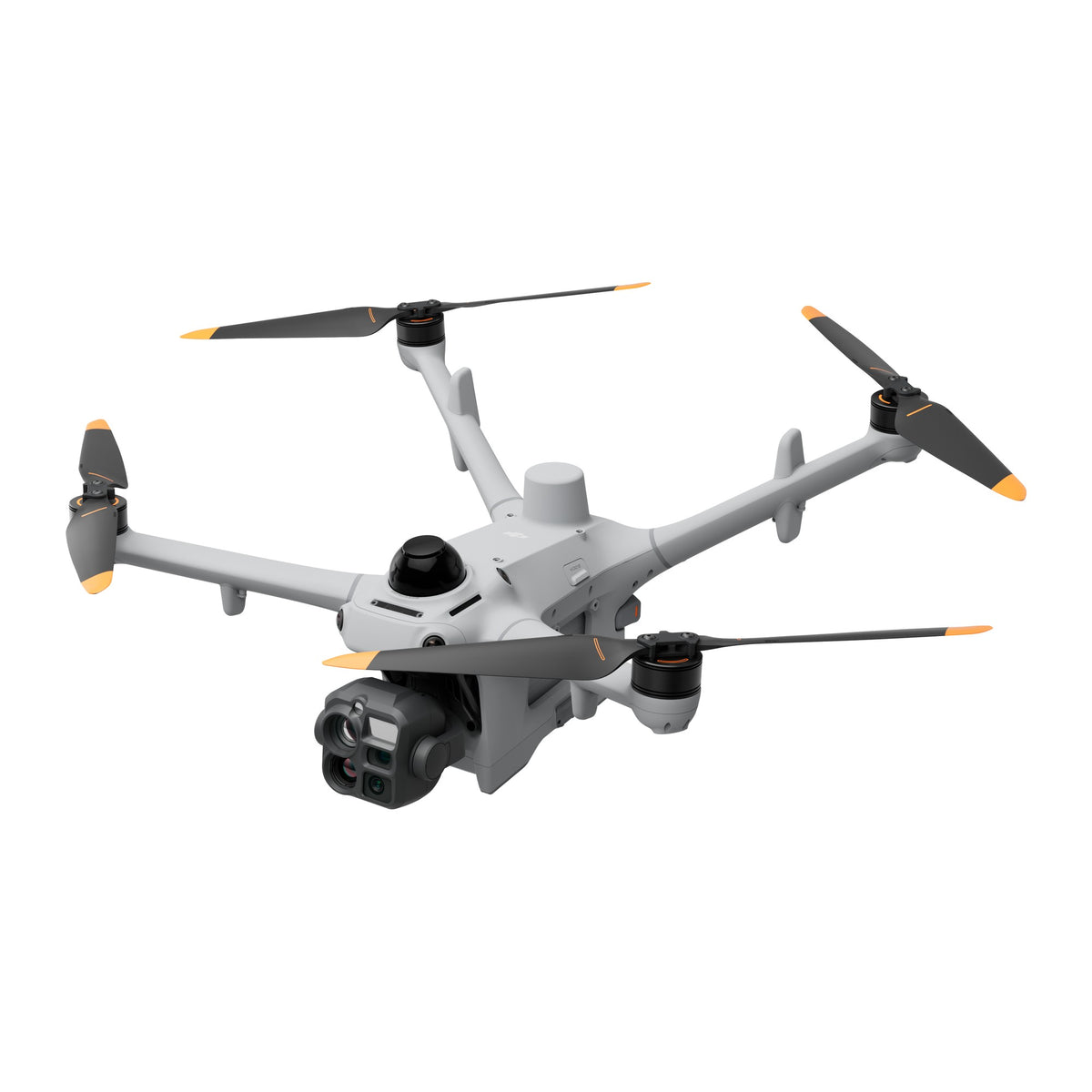

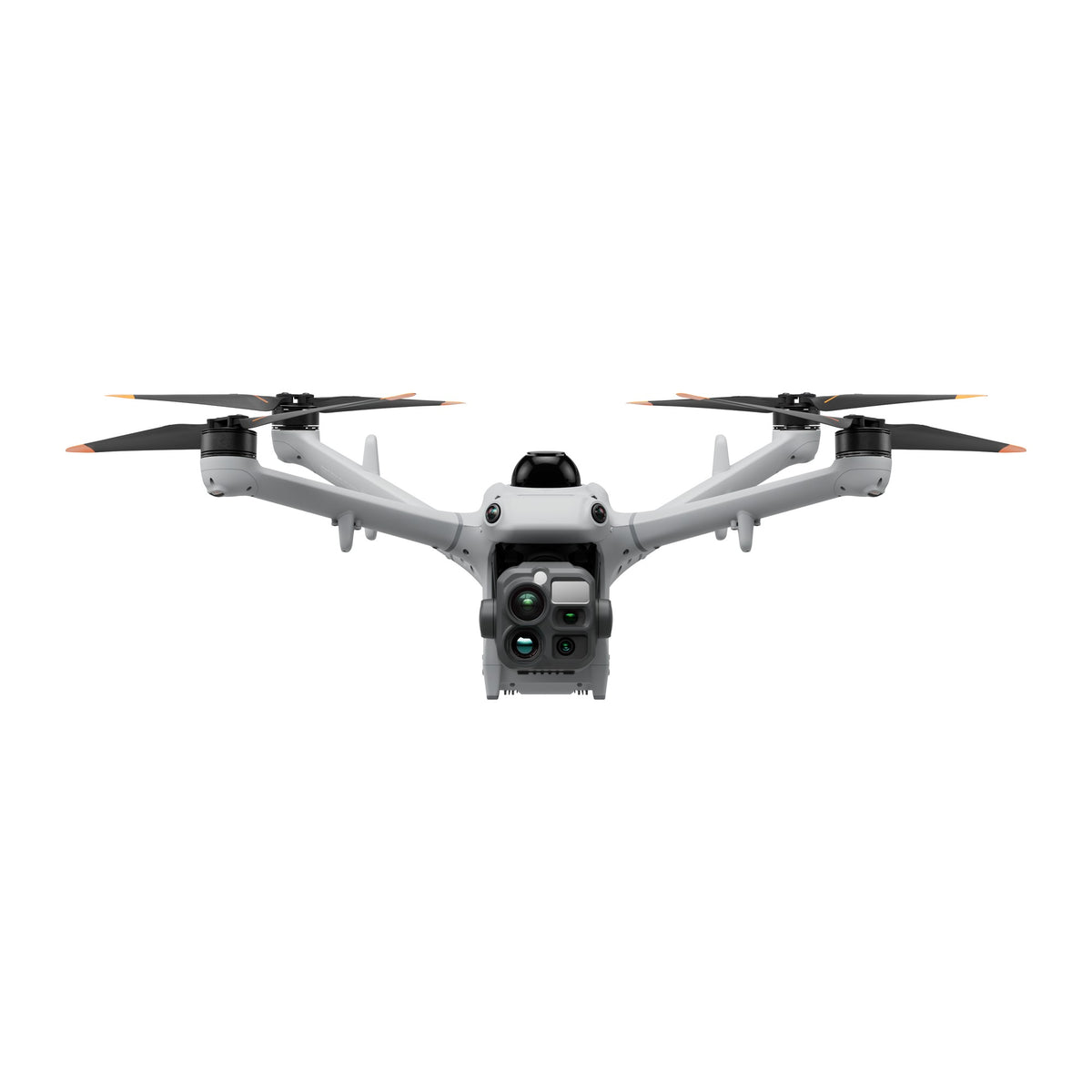

DJI Matrice 5TD
One aircraft for visual, thermal and mapping work.
- Visible and thermal
- 59-minute max flight
- 450 g accessory payload
Pay with
-
Setup & training
included -
12-month
Australian warranty -
Express shipping
Australia-wide

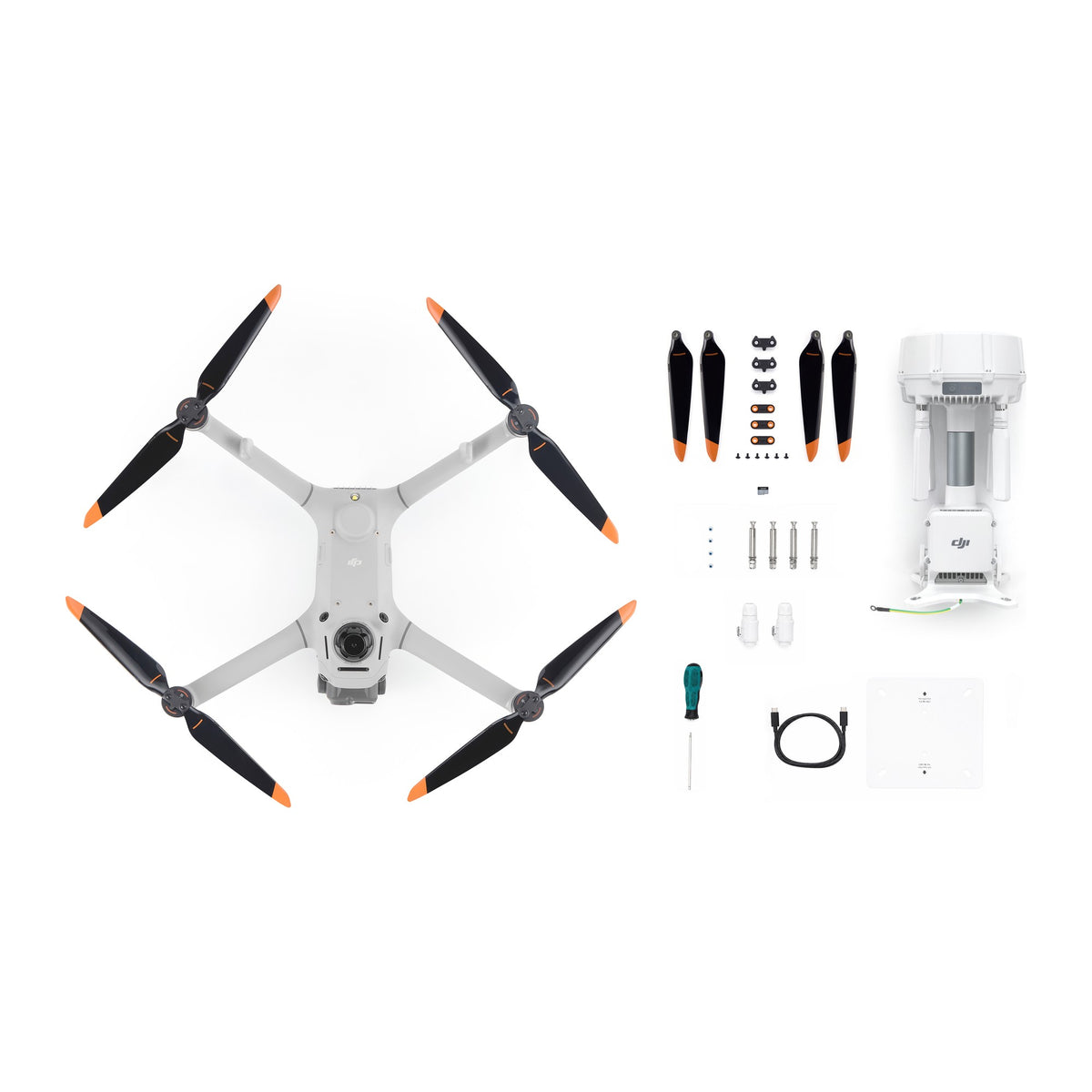

What Matrice 5TD carries
Four cameras, a laser rangefinder and up to 450 g of accessories on the aircraft Dock 4 flies.
See more
The thermal camera captures 1280 × 1024, or 2560 × 2048 in UHR mode, with 32× digital zoom. Heat shows on the live feed in the control room.
- Thermal
- 1280 × 1024
- UHR mode
- 2560 × 2048
- Digital zoom
- 32×

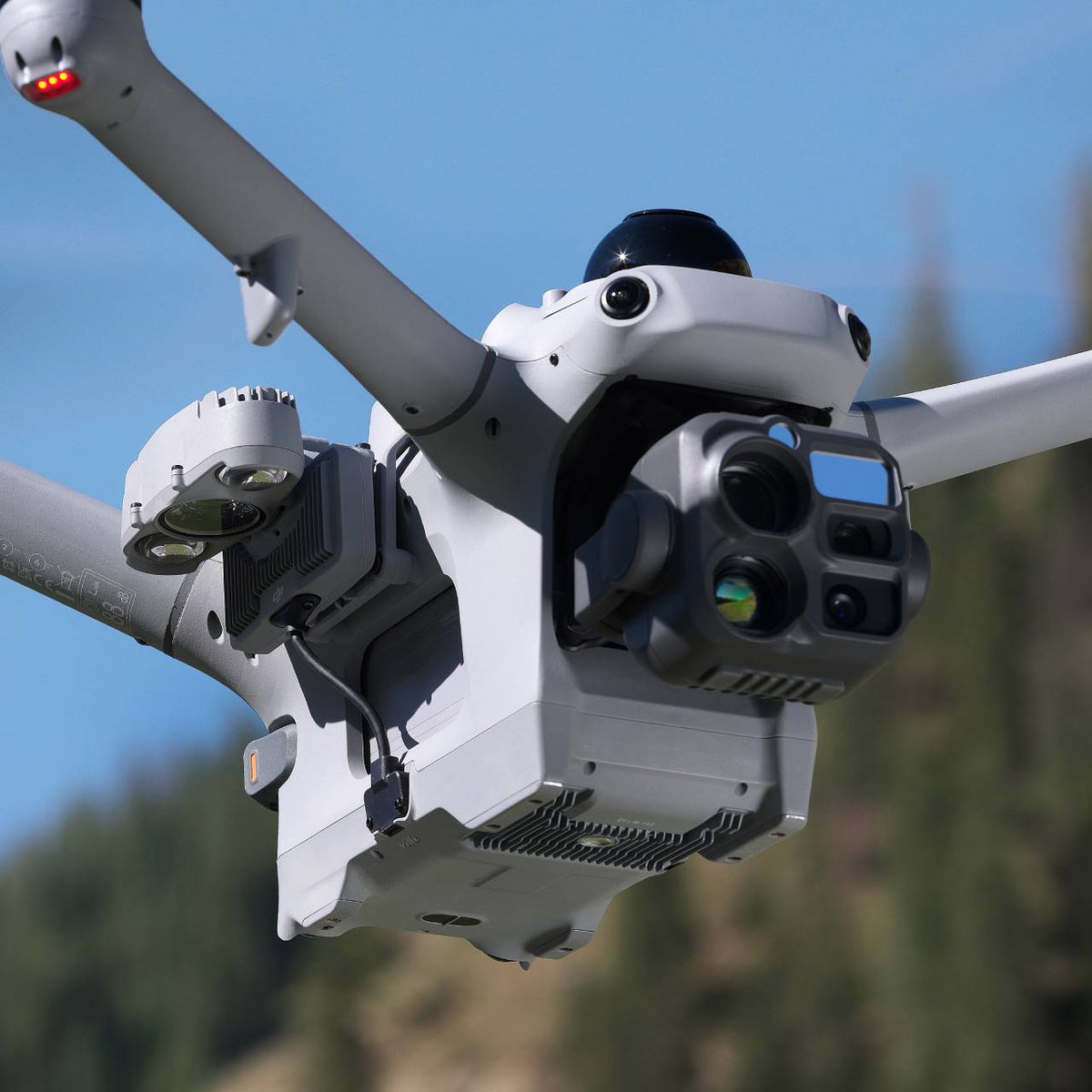

Full-colour night vision keeps colour and texture in low light, so the feed stays readable after sunset. Add the AL2 Spotlight to light the target.
- Night vision
- Full colour, 4K
- Spotlight
- AL2 Spotlight on the right-side mount
Point at something on the feed and read its distance, up to 3,000 m away.
- Laser range
- 3,000 m at 25% reflectivity
- Oblique range
- 1,200 m
Fly longer, carry more
Matrice 5TD flies for up to 59 minutes without a payload and hovers for 55. Its 260 Wh battery is the one Dock 4 swaps in 25 seconds.
- Max flight time
- 59 min, no payload
- Hover
- 55 min
- Operating radius
- 10 km
- Top speed
- 21 m/s on FlyTo tasks
- Battery
- 260 Wh, self-heating

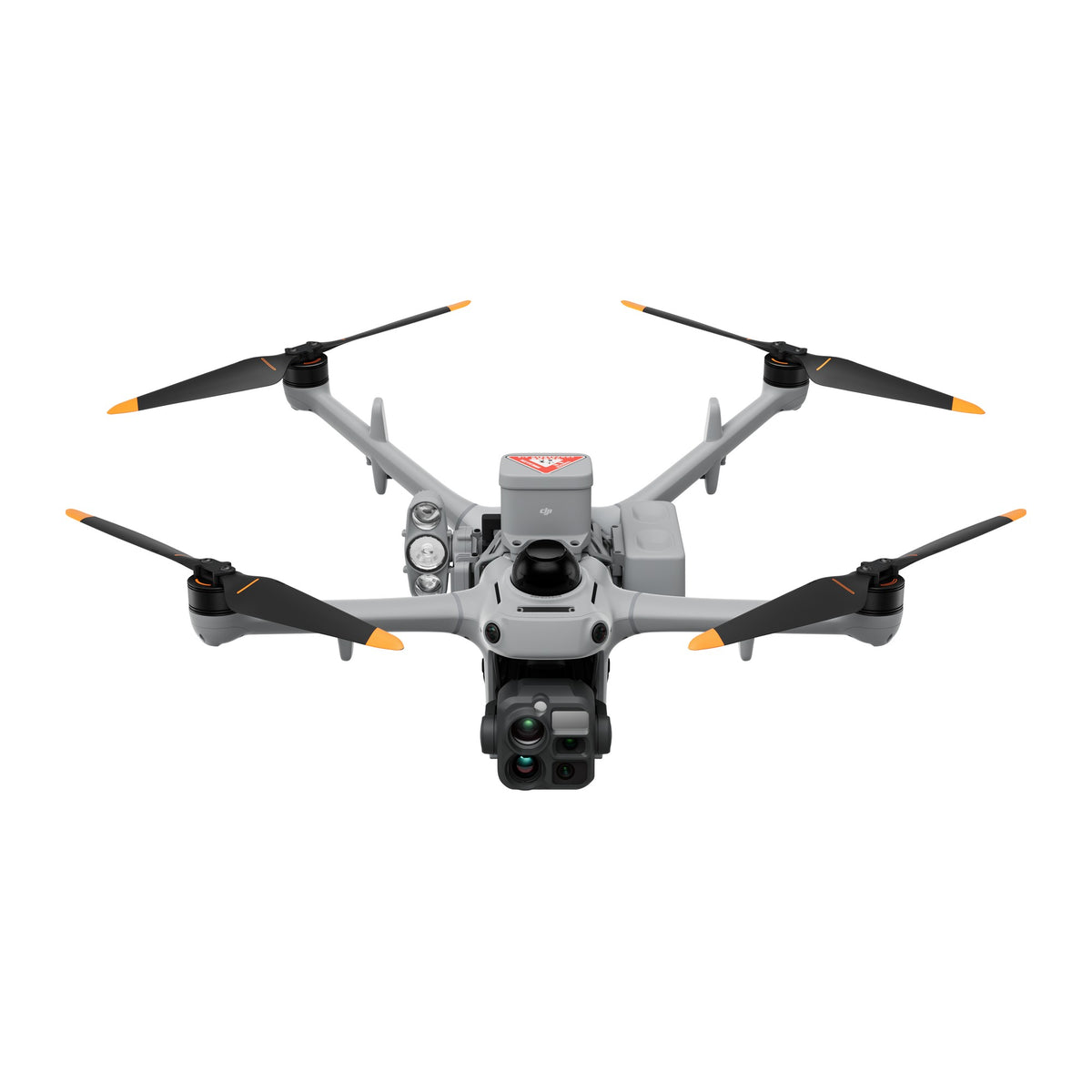

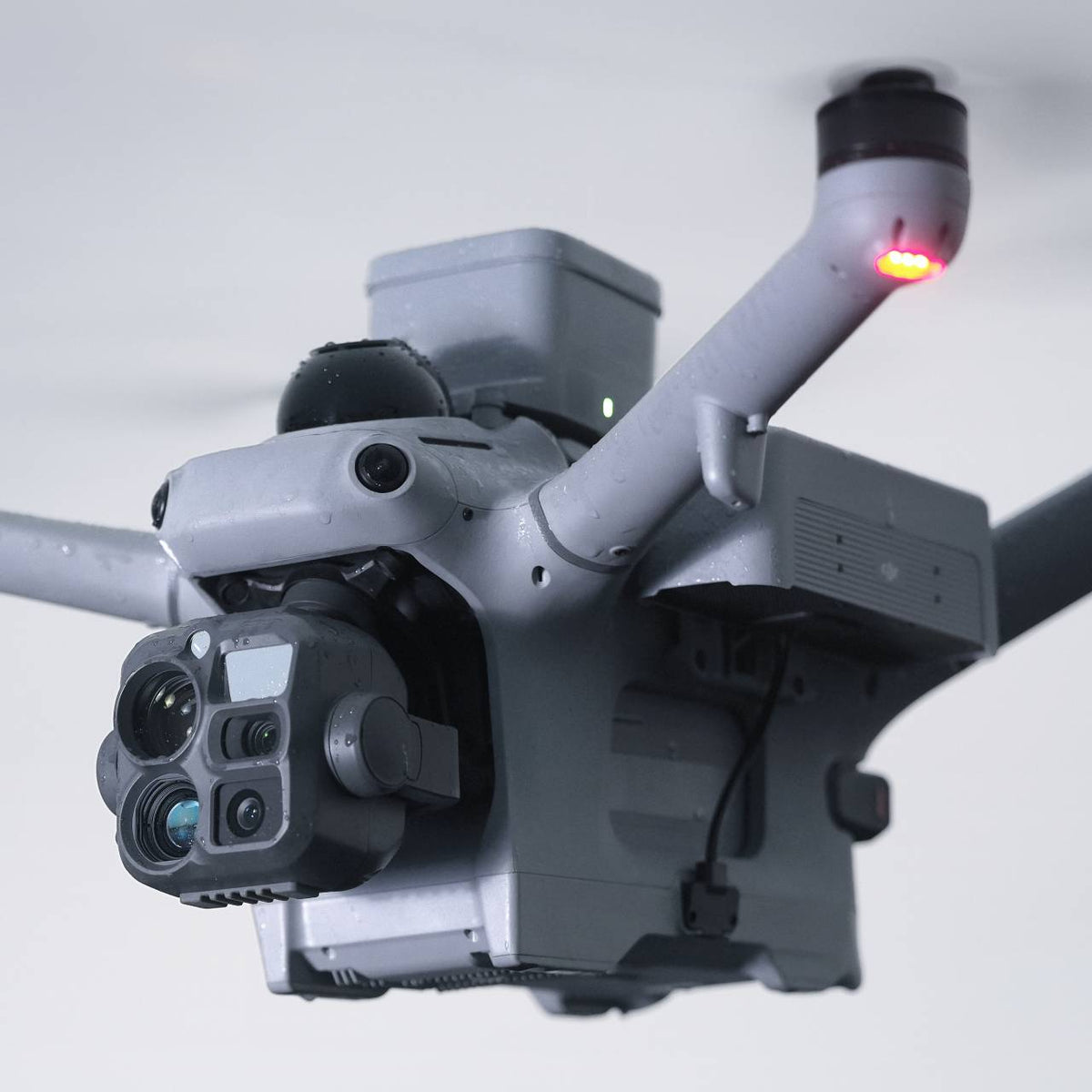

The Accessory Mount adds a position on each side, so the AS2 Speaker and AL2 Spotlight fly together. The AP1 Parachute takes the top mount. Matrice 5TD carries up to 450 g.
- Payload
- Up to 450 g, with the Accessory Mount
- Speaker
- Left side
- Spotlight
- Right side
- AP1 Parachute
- Top mount
- Visual obstacle sensing pauses while the spotlight is on
Fly safely
Three-direction millimetre-wave radar, a rotating LiDAR and six-direction vision watch the space around the aircraft and pick up wires down to 11 mm.
- Radar
- mmWave, three directions
- LiDAR
- Rotating
- Vision
- Six directions, full colour
- Traffic
- ADS-B and Remote ID
| Takeoff weight | 2,600 g (with battery and propellers) |
|---|---|
| Max takeoff weight | 3,050 g |
| Max payload | 450 g |
| Payload mounts | Top, left and right |
| Dimensions | 393 × 477 × 230 mm (without propellers) |
| Max flight time | 59 min |
| Max horizontal speed | 21 m/s (FlyTo tasks) · 15 m/s (other modes) |
| Wind resistance | 12 m/s |
| Max takeoff altitude | 6,500 m · 4,500 m at full load |
| IP Rating | IP55 |
| Operating temperature | -40 °C to +50 °C |
| Wide camera | 50 MP, 1/0.98-inch CMOS, 23.5 mm equiv., f/1.8 |
| Zoom camera | 50 MP medium tele (70 mm equiv.) · 50 MP tele (252 mm equiv.) |
| Zoom range | 16× digital, 176× hybrid |
| Thermal resolution | 1280 × 1024 · 2560 × 2048 (UHR mode) |
| Thermal sensitivity (NETD) | ≤ 50 mK @ f/1.0 |
| Temperature measurement range | -40 °C to +150 °C (high gain) · 0 °C to +550 °C (low gain) |
| Laser rangefinder | 3,000 m · 1,200 m oblique |
| Obstacle sensing | Omnidirectional full-colour vision, 360° rotating LiDAR, mmWave radar (forward, up, down), 3D infrared (down) |
| Video transmission | DJI O4 Enterprise Enhanced, 1080p/30fps live view, built-in dual 4G |
| Max transmission distance | 12 km (CE/MIC) · 25 km (SRRC) · 40 km (IC) |
| RTK | Built-in |
| GNSS | GPS, Galileo, BeiDou, QZSS; GLONASS with RTK enabled |
| Battery | 260 Wh, 925 g, swapped by Dock 4 |
Choosing a model
What's new over Matrice 4TD?
Up to 59 minutes in the air against 54, a 1280 × 1024 thermal camera against 640 × 512 and an 11× telephoto against 7×. It adds LiDAR and millimetre-wave radar sensing, built-in dual 4G, a sub-2 GHz link, a 450 g accessory payload and operation down to -40 °C.
Which accessories can it carry?
The AS2 Speaker, AL2 Spotlight and AP1 Parachute, within a 450 g payload. The parachute takes the top position, and the Accessory Mount adds positions on both sides: the speaker on the left, the spotlight on the right.
On the job
What cameras does it carry?
Three 50 MP cameras (wide, 70 mm medium tele and 11× tele, up to 176× hybrid zoom), a 1280 × 1024 thermal camera (2560 × 2048 in UHR mode) that measures from -40 °C to 550 °C, a 3 km laser rangefinder and a near-infrared illuminator.
How long does it fly?
Up to 59 minutes, or 55 minutes hovering, with about 48 minutes of working time per flight. FlyTo tasks reach 21 m/s (15 m/s in other modes), so a target 3 km away is under three minutes.
How well does it see at night?
The 11× telephoto uses an RYYB sensor that takes in about 30% more light, and onboard processing merges frames for 4K colour night video. Night-mode ISO reaches 1,638,400, and a near-infrared light adds black-and-white night vision.
How does it sense obstacles?
Six-direction full-colour vision works with a 360° rotating LiDAR and forward, upward and downward millimetre-wave radar. It senses insulated wire down to 11 mm, and the forward radar measures a 12 mm cable 40 m ahead.
Does it have a flight termination system?
Yes. It's built into the airframe, runs separately from the autopilot and needs at least one 4G SIM. With the AP1 Parachute fitted, it stops the motors and opens the canopy, automatically or from FlightHub 2.
What maintenance does it need?
Basic maintenance every 6 months, regular maintenance with wear parts every 12 months or 500 flight hours, and deep maintenance with a new propulsion system every 36 months or 1,000 flight hours, whichever comes first.
Data and software
How accurate is it for mapping?
About 10 cm aerial triangulation checkpoint accuracy at 120 m, flying nadir or oblique area routes at 12 MP without terrain follow. The electronic rolling shutter is corrected line by line, and smart oblique capture is supported.
What can the onboard AI detect?
17 target types, recognised on the aircraft, including people and vehicles filtered by colour, smoke and fire, livestock, river debris and vehicle types from sedans to excavators. It also flags thermal hotspots and can run third-party AI models.
Can we integrate our own payloads or software?
Yes. Payload SDK (PSDK V4) covers payloads on its E-Port interfaces within the 450 g limit, and DJI Cloud API connects third-party software platforms.
